Installing Strut (Front Section)

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Install strut (front section) -1-  .

   Position strut (front section) -1-  and fit and tighten nut -3-  .

   1. 1.1  > Tightening torque 8 Nm (6 ftlb.)
   2. 1.2  Fit and tighten screw -2-  .

      > Tightening torque 8 Nm (6 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

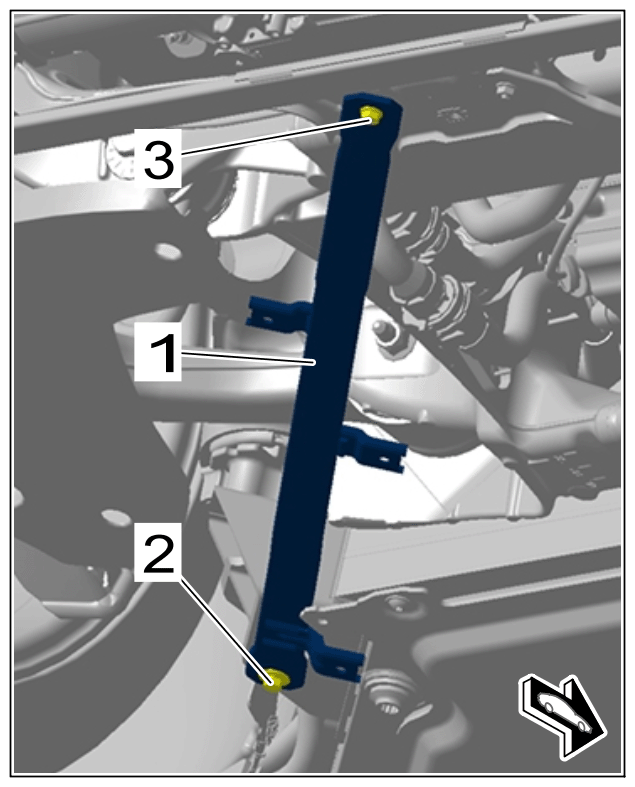

      Strut (front section)

   3. 1.3 Only for front right section:

      Clip in clips on wiring harness.
