Installing Strut (Complete)

1. 1.1  Position strut (complete) -1-  and fit and tighten nuts -4-  .

   > Tightening torque 8 Nm (6 ftlb.)

2. 1.2  Fit and tighten screws -3-  .

   > Tightening torque 8 Nm (6 ftlb.)

3. 1.3  Fit and tighten screw -2-  .

   > Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

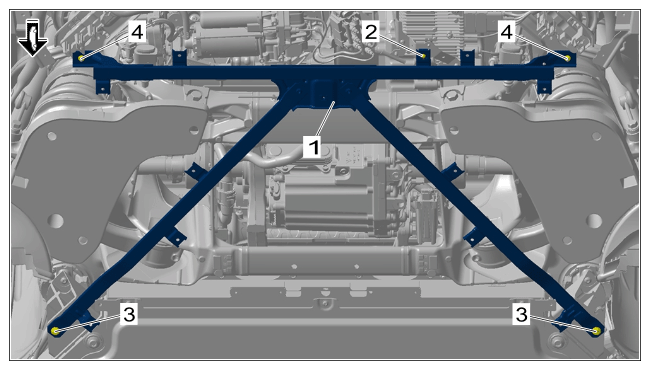

   Strut (complete)

4. 1.4  Clip in clips on wiring harness in the front right section

   Information

   The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

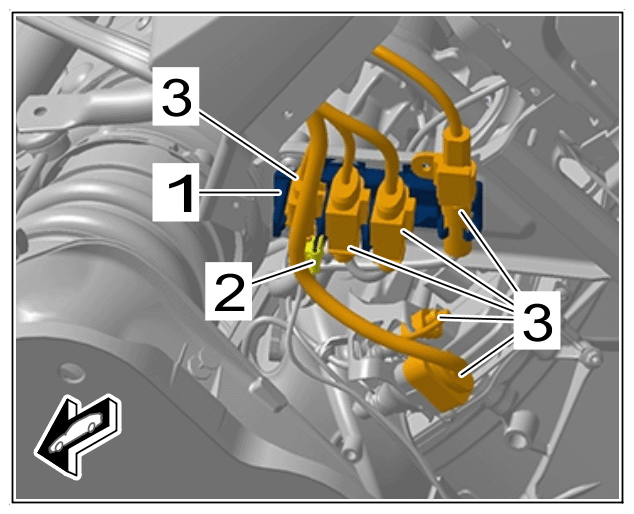

Electric plug connections
