Technical Values

Location	Description	Type	Basic value
Lower trailing arm on wheel bearing housing	Initial tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm

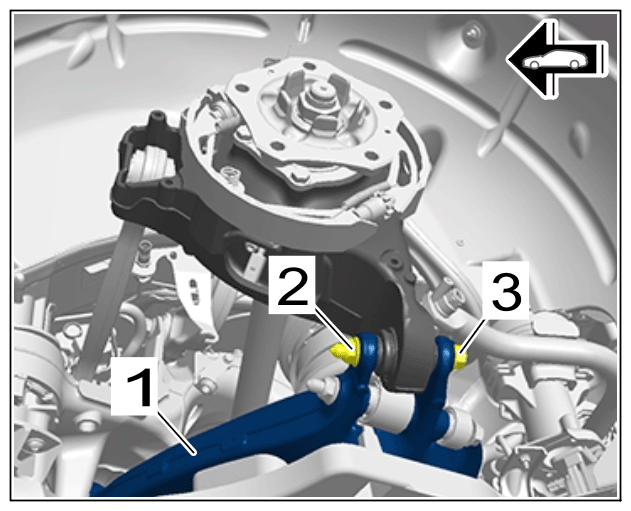

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower trailing arm on wheel bearing housing
Lower trailing arm on wheel bearing housing	Final tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower trailing arm on wheel bearing housing
Shock absorber to lower trailing arm	Initial tightening/Screw/Nut/Item 5 and 6/Always replace threaded connection following removal.	Tightening torque	70 Nm

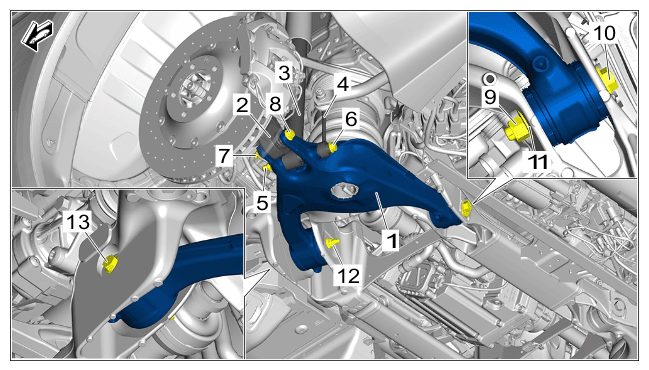

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trailing arm
Shock absorber to lower trailing arm	Final tightening/Screw/Nut/Item 5 and 6/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. trailing arm
Lower trailing arm on rear axle housing	Final tightening/Screw/Nut/Item 9 and 10/Always replace threaded connection following removal.	Tightening torque	160 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trailing arm
Lower trailing arm on rear axle housing	Initial tightening/Screw/Nut/Item 12 and 13/Always replace threaded connection following removal.	Tightening torque	70 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trailing arm
Lower trailing arm on rear axle housing	Final tightening/Screw/Nut/Item 12 and 13/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. trailing arm
Rear level sensor	(Screws) Item 3 and Item 4//Always replace screws following removal!	Initial tightening	3 Nm (2 ftlb.)

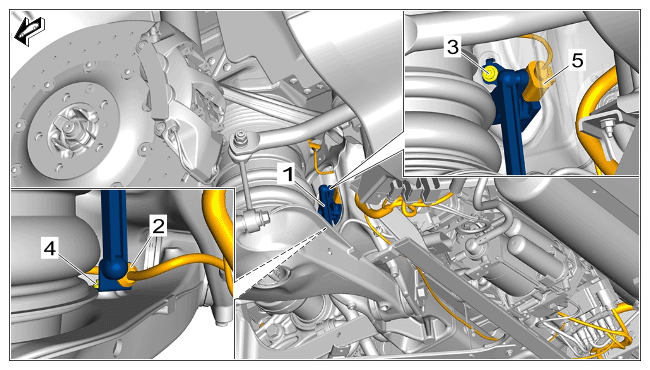

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear level sensor
Rear level sensor	(Screws) Item 3 and Item 4/Always replace screws following removal!	Final tightening	45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear level sensor
