Technical Values

Location	Description	Type	Basic value

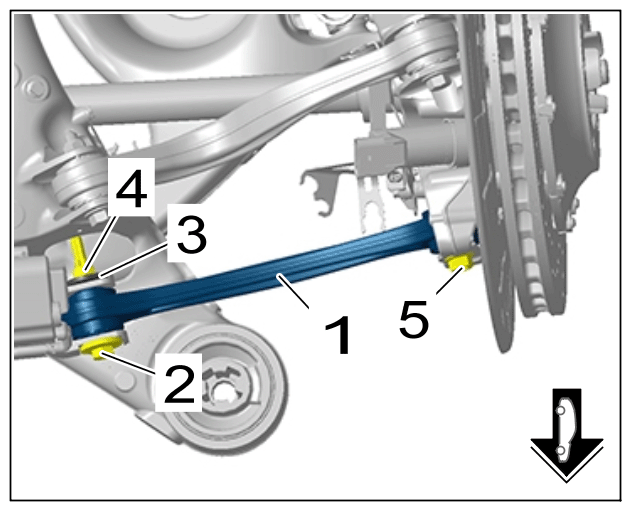

Tie rod to rear axle steering/cross member	Screw/Nut/Item 2 and 4/Always replace threaded connection following removal./Screw in zero position.	Tightening torque	100 Nm (74 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod

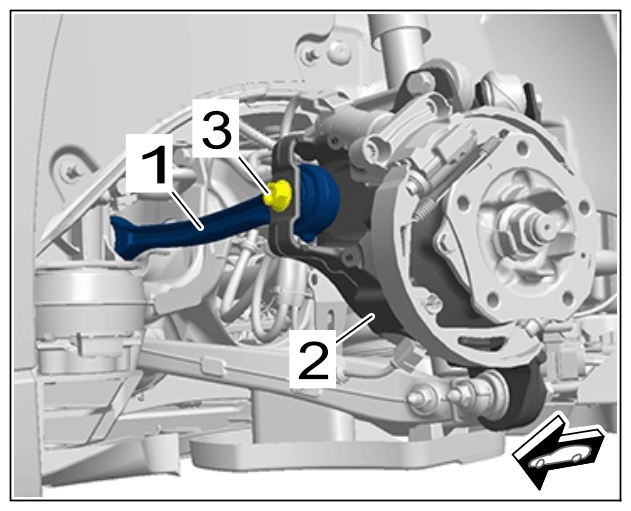

Tie rod to rear wheel bearing housing	Initial tightening/Screw/Item 3/Always replace screw following removal.	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod
Tie rod to rear wheel bearing housing	Final tightening/Screw/Item 3/Always replace screw following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie rod
