Removing Tie Rod

Remove tie rod -1- .

1.1 Mark the position of the eccentric screw -2- and eccentric washer -3- .
1.2 Unscrew nut -4- and counter at the eccentric screw -2- .
1. 1.2.1 Replace nut and eccentric screw.
1.3 Remove eccentric washer -3- and remove eccentric screw -2- .
1.4 Unscrew screw -5- .
1. 1.4.1 Replace screw.

1.5 Remove tie rod -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

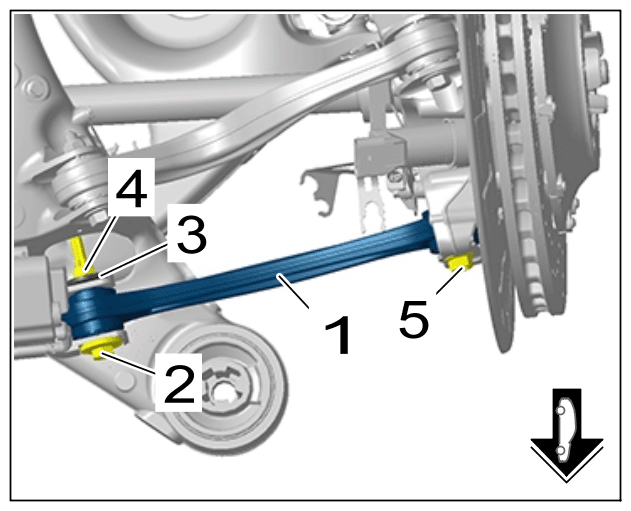

Tie rod
