Replacing Ear-Axle Bearing (Rear)

Information

• The marking on the bearing housing always points to the rear in direction of travel  .

The following tools are required for removing and pressing in the bearing:

• > 9698/1 - Assembly fixture  , spindle and nut from > 9698 - assembly fixture
• > 9698/2 - Pressure piece
• > VAS 6178 - Hydraulic cylinder
• > VAS 6179 - Foot pump
• Optional:  > VAS 6179/1 - Pressure Gauge with Connection Line

1. Spray bearing seat with anti-rust agent before pressing it out to make it easier to pull off the bearing.

   Allow anti-rust agent to work.

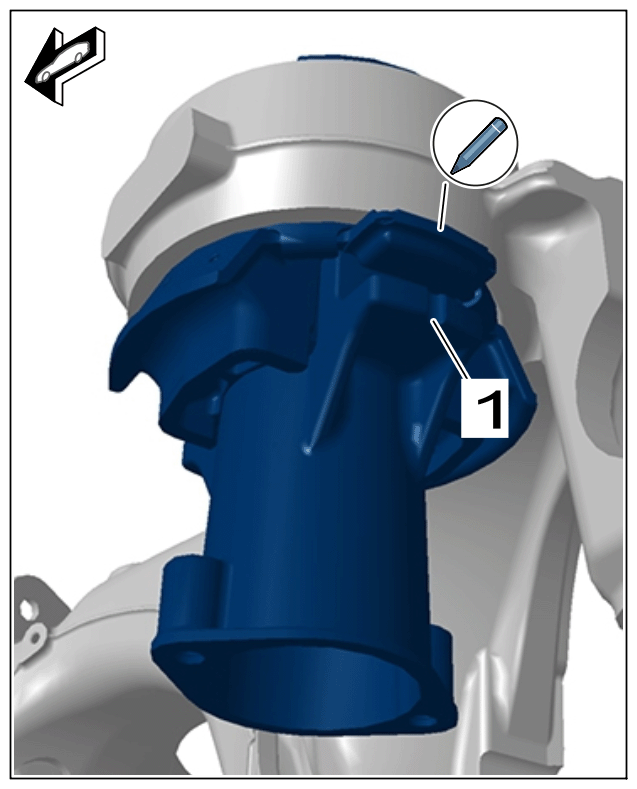

2. Mark the position of the recess -1-  on the rear axle housing -Pin-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Position of recess for rear bearing

   Information

   The help of another person is required.

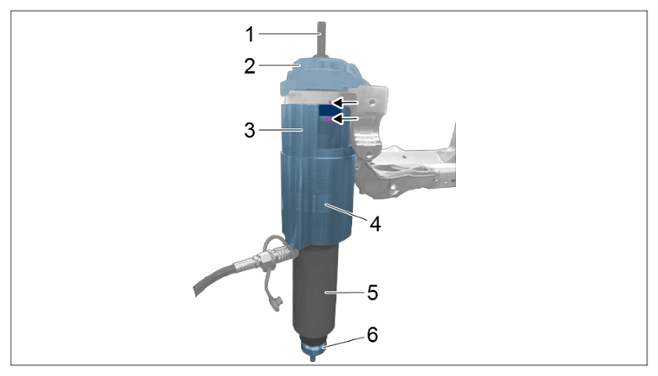

3. Press out rear bearing using the specified tools.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tools for rear bearing

   1	Spindle with nut from > 9698 - assembly fixture
   2	Pressure piece 9698/1-6
   3	> 9698/2 - Pressure piece
   4	Sleeve 9698/1-1
   5	> VAS 6178 - Hydraulic cylinder
   6	Spacer (optional) for better securing of the spindle
   →	N-marking

   1. 3.1  Fit pressure piece 9698/1-6 -2-  at the top of the rear bearing with spindle -1-  and nut and centre it.

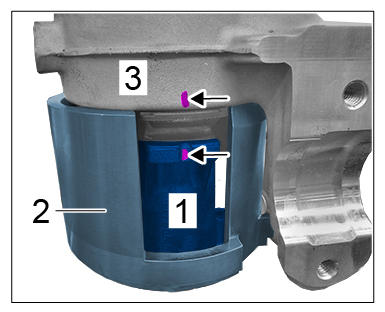

   2. 3.2  Position > 9698/2 - pressure piece-2-  at the bottom of the bearing and align it on the contact surface of the rear axle housing.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pressure piece 9698/2 for rear bearing

   3. 3.3  Fit sleeve 9698/1-1 -2-  from below on pressure piece 9698/2 -1-  .

      Information

      The help of another person is required.

   4. 3.4  Push > VAS 6178 - hydraulic cylinder  onto the spindle and secure with spacer and nut.
   5. 3.5  Press out rear bearing using > VAS 6178 - hydraulic cylinder  at setting 1.

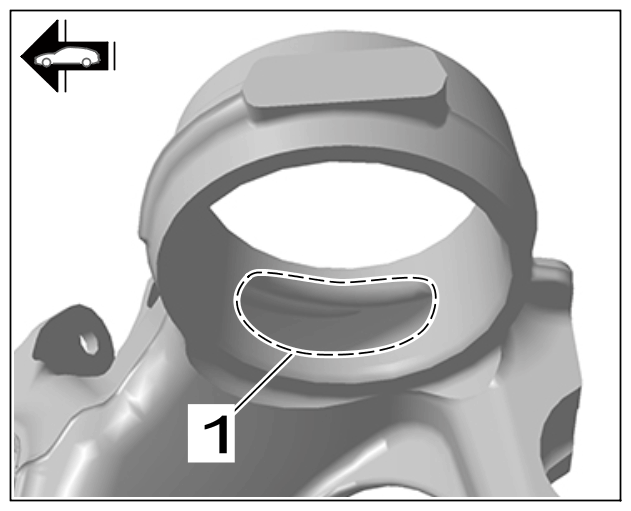

4. Carefully de-burr edges -1-  of the recesses in the bearing seat.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Recesses for rear-axle bearing seat

   1. 4.1  Clean the bearing seat and polish it with fine sandpaper if necessary.
   2. 4.2  Lightly grease bearing seat with Kluber Syntheso Glep  .

      Press in rear bearing:

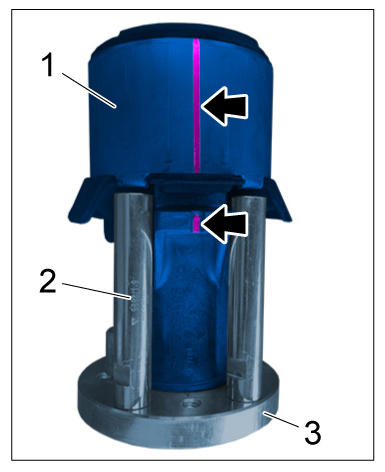

5. Rear bearing -1-  :

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing (rear) bearing

   1. 5.1  Align markings -Arrows-  .
   2. 5.2  Screw four pins 9698/1-9 -2-  into washer 9698/1-8 -3-  (position A).
   3. 5.3  Secure bearing -1-  in the tool.

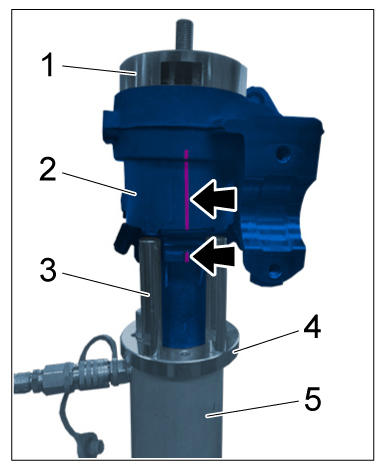

6. Bearing position for pressing in the bearing (rear), markings on the bearing (rear) and on the rear axle housing must be aligned -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bearing position for pressing in

   1	Pressure piece 9698/1-7
   2	Rear bearing
   3	Pin 9698/1-9  (4 ea.)
   4	Washer 9698/1-8
   5	> VAS 6178 - Hydraulic cylinder

   Information

   Overpressing the bearing can damage the rubber. The bearing must be replaced in this case.

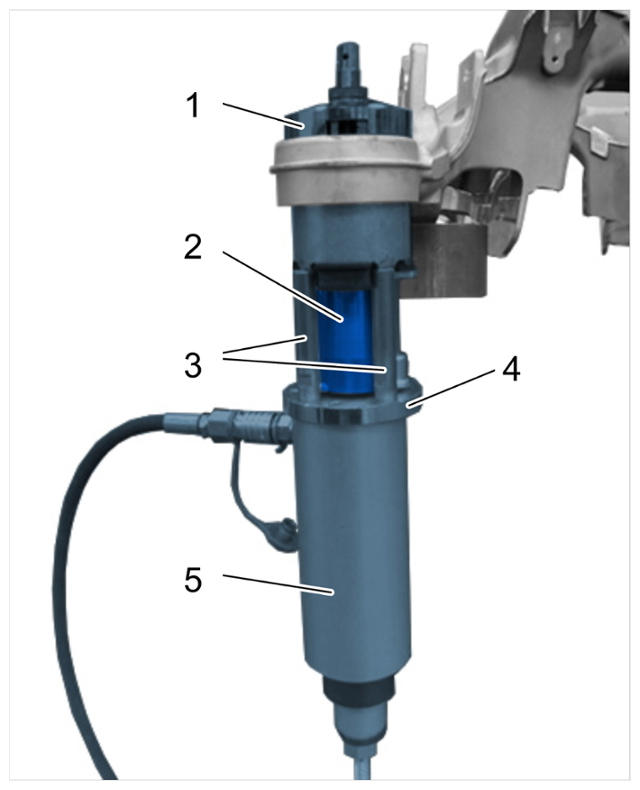

7. Press in -2-  rear bearing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tool arrangement for rear bearing

   1	Pressure piece 9698/1-7
   2	Rear bearing
   3	Pin 9698/1-9  (4 ea.)
   4	Washer 9698/1-8
   5	> VAS 6178 - Hydraulic cylinder

   1. 7.1  Centre pressure piece 9698/1-7 -1-  with spindle and nut on the contact surface of the rear axle housing.
   2. 7.2  Centre bearing -2-  with fixing device (9698/1-9  pin -3-  with 9698/1-8  washer -4-  ) on the bearing seat.
   3. 7.3  Slowly press in rear bearing -2-  using > VAS 6178 - hydraulic cylinder-5-  at setting 1.

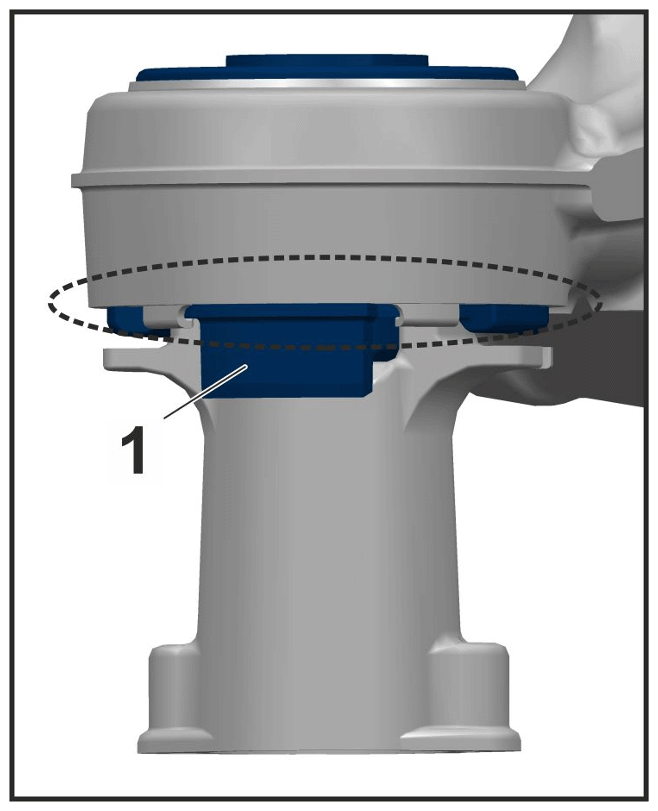

   4. 7.4  Press the rear bearing -1-  in as far as required until there is no gap between the rubber and the contact surface of the rear axle housing.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Press-in instructions
