Technical Values

Location	Description	Type	Basic value
Shock absorber to lower trailing arm	Final tightening/Screw/Nut/Item 5 and 6/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. trailing arm
Lower trailing arm on rear axle housing	Final tightening/Screw/Nut/Item 9 and 10/Always replace threaded connection following removal.	Tightening torque	160 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trailing arm
Lower trailing arm on rear axle housing	Initial tightening/Screw/Nut/Item 12 and 13/Always replace threaded connection following removal.	Tightening torque	70 Nm

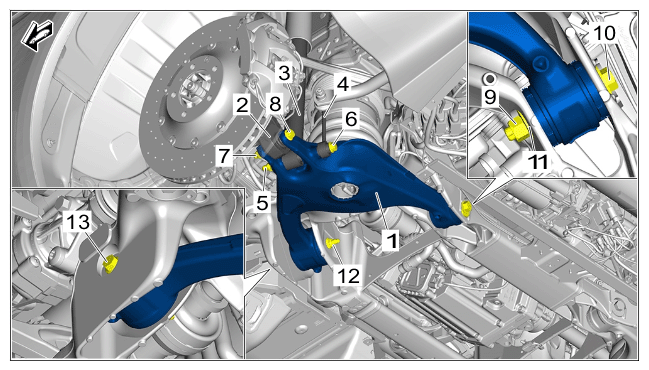

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Trailing arm
Lower trailing arm on rear axle housing	Final tightening/Screw/Nut/Item 12 and 13/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. trailing arm
Upper control arm, front to rear axle housing	Initial tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm (52 ftlb.)

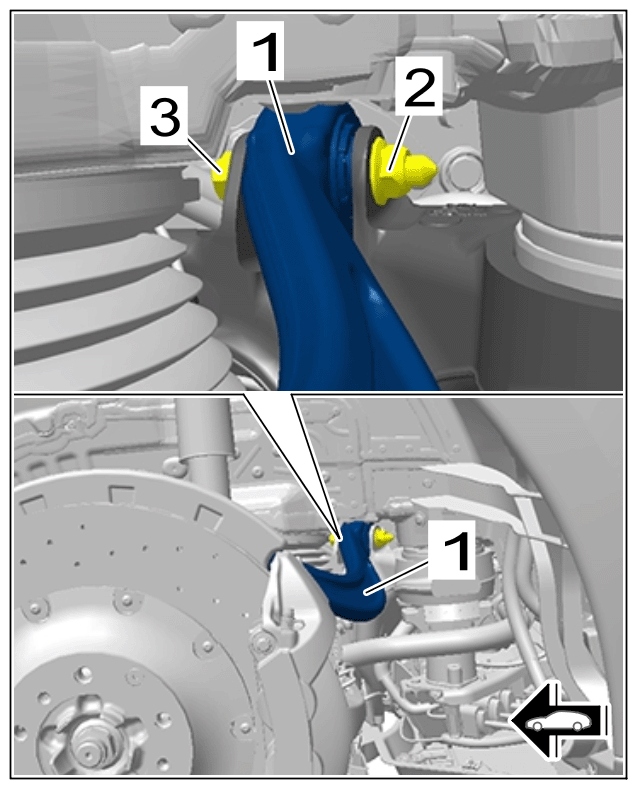

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Upper control arm, front to rear axle housing	Final tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Upper control arm, rear to rear axle housing	Initial tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm (52 ftlb.)

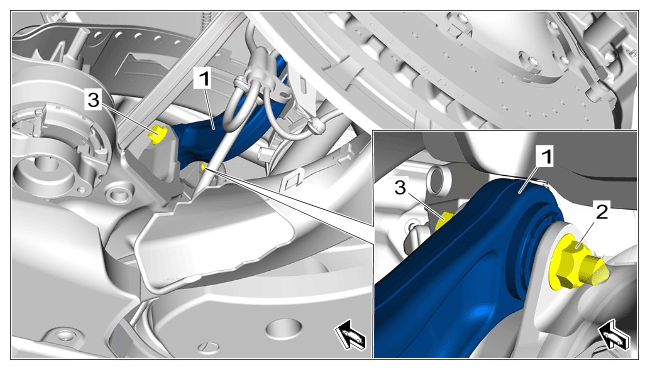

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Upper control arm, rear to rear axle housing	Final tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Cross member/servo motor for rear axle steering to rear axle housing	Initial tightening/Screws/Item 5 to 8/Observe tightening sequence Item 5 to 8./Always replace screws following removal.	Tightening torque	70 Nm (52 ftlb.)

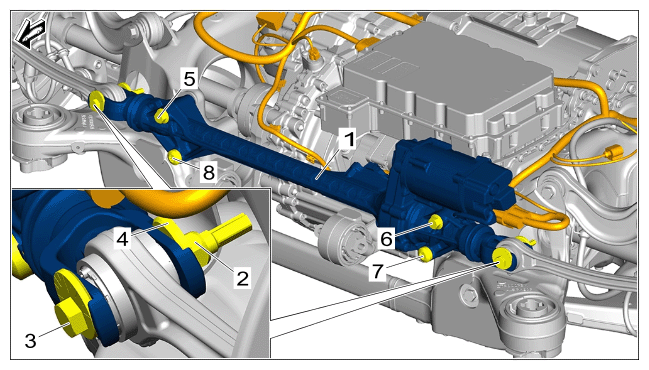

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear axle steering
Cross member/servo motor for rear axle steering to rear axle housing	Final tightening/Screws/Item 5 to 8/Observe tightening sequence Item 5 to 8./Always replace screws following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear axle steering
Wiring harness holder (side) to rear axle housing	Screws/Item 2	Tightening torque	8 Nm (6 ftlb.)

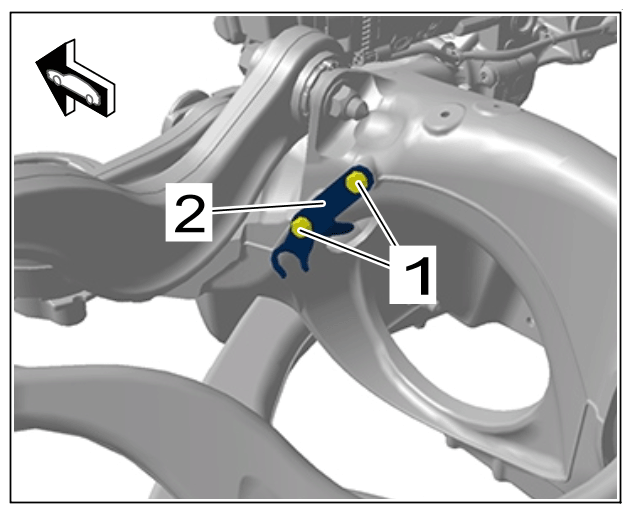

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brackets
Wiring harness holder (rear) to rear axle housing	Screws/Item 1	Tightening torque	8 Nm (6 ftlb.)

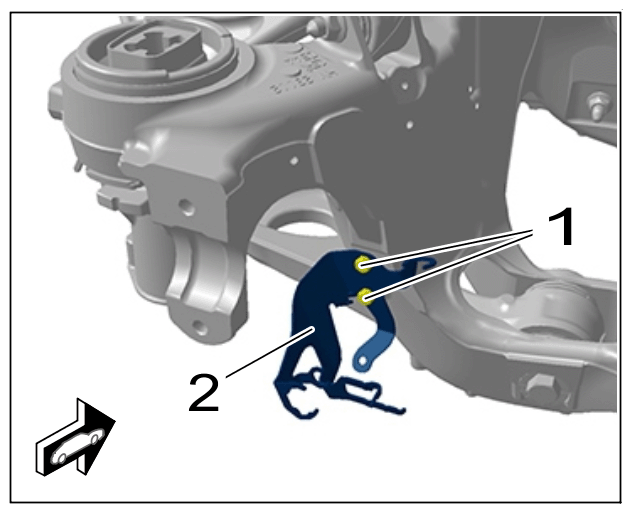

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wiring harness holder
Bracket securing Tyre Pressure Monitoring (TPM) control unit to rear axle housing	Item 1	Tightening torque	4.5 Nm (3.25 ftlb.)

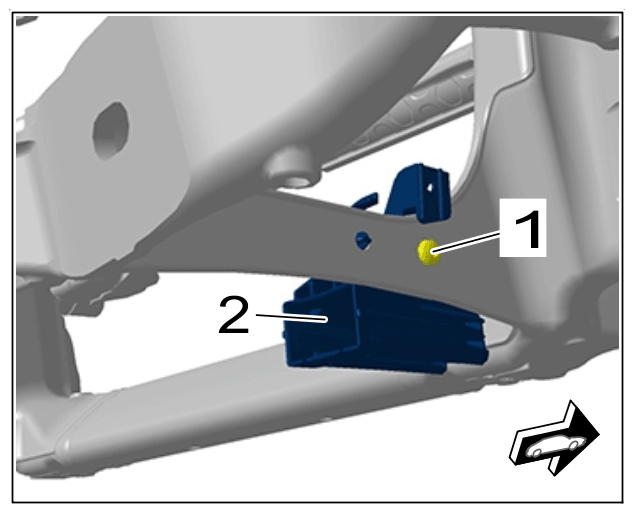

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for Tyre Pressure Monitoring (TPM) control unit
