Technical Values

Location	Description	Type	Basic value
Nut securing electric equipotential bonding line for electric motor on rear axle	Item 2	Tightening torque	8.5 Nm (6.3 ftlb.)

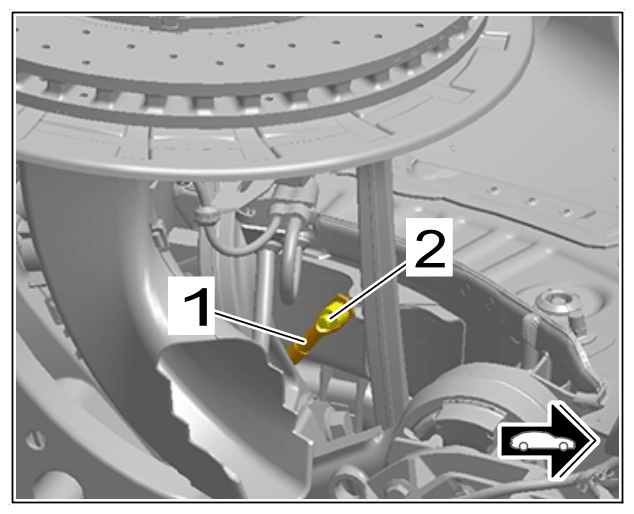

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric equipoiential bonding line.
Fastening screws	High-voltage line for power electronics	Tightening torque	8 Nm (5.9 ftlb.)

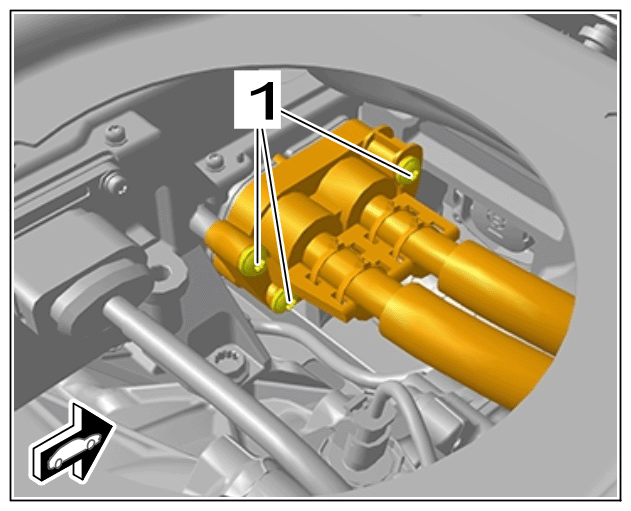

Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage line for power electronics
Rear axle housing to body	Initial tightening/Screws/Item 2/Always replace screws following removal.	Tightening torque	130 Nm (96 ftlb.)

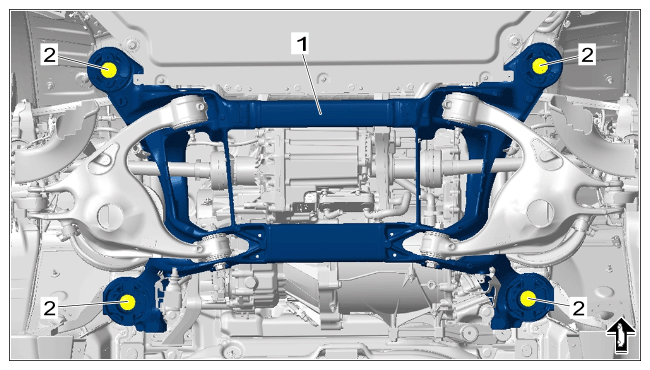

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear axle
Rear axle housing to body	Final tightening/Screws/Item 2/Always replace screws following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear axle
Bracket to rear axle	Screws/Item 3	Tightening torque	20 Nm (15 ftlb.)

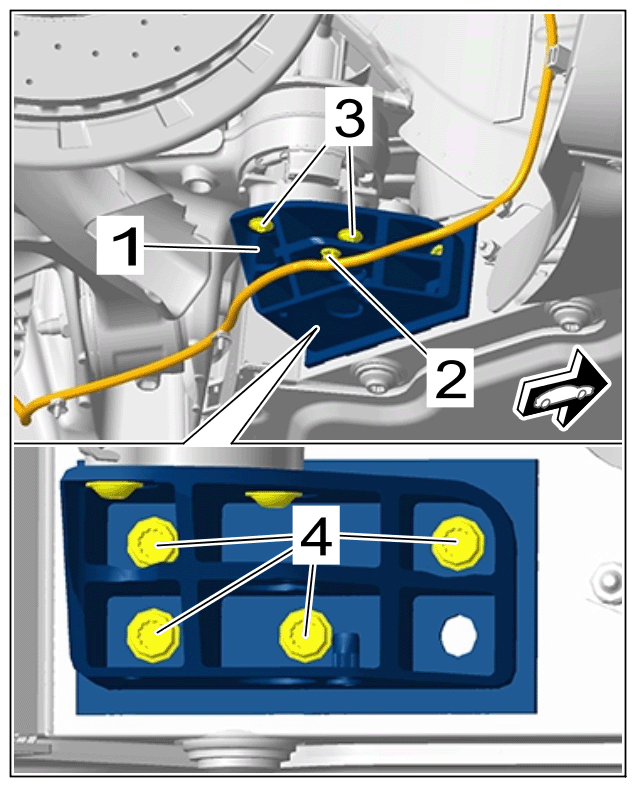

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brackets
Bracket to high-voltage battery	Screws/Item 4	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brackets
Front mounting saddle to bracket on body	Item 1: Screw, M10 x 40 - replace screw	Initial tightening	50 Nm (37 ftlb.)
Front mounting saddle to bracket on body	Item 1: Screw, M10 x 40 - replace screw	Final tightening torque angle	60 °
Rear mounting saddle to rear final drive bracket	Item 3: Screw, M10 x 40 - replace screw	Initial tightening	50 Nm (37 ftlb.)
Rear mounting saddle to rear final drive bracket	Item 4: Screw, M10 x 50 - replace screw	Final tightening torque angle	60 °
