Subsequent Work
- Installing stabilizer.
- Install the pressure reservoir.
- Install the compressor.
- Only vehicles with PDCC:
Install rear roll stabilisation (PDCC).
- Install control unit for Tyre Pressure Monitoring (TPM).
> 443419 REMOVE AND INSTALL CONTROL UNIT FOR TYRE PRESSURE MONITORING (TPM)
- Install strut.
- Install air bellows.
- Only for vehicles with coil springs
.
Install coil springs.
- Install rear shock absorber.
- Secure rear level sensors to the trailing arm.

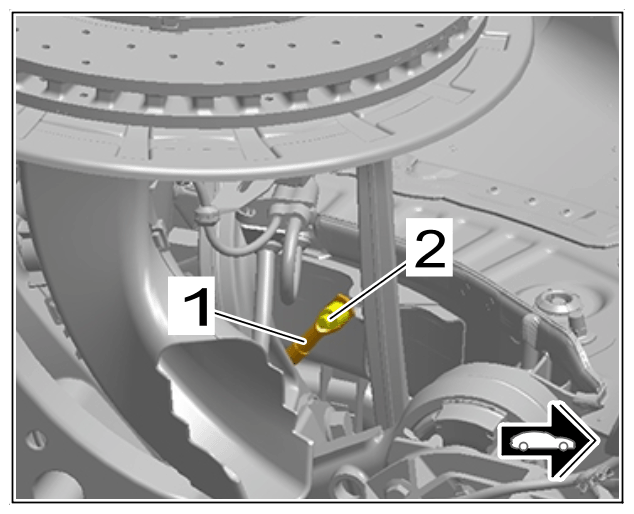

- Secure electric potential equalisation line -1-
.
Electric potential equalisation line.
- 11.1 Position electric potential equalisation line -1- .
- 11.2
Fit and tighten nuts -2-
.
> Tightening torque 8.5 Nm (6.3 ftlb.)
- Secure brake caliper rear.
- Install wheel housing liner rear.
- Install rear wheels.
- Refill coolant.

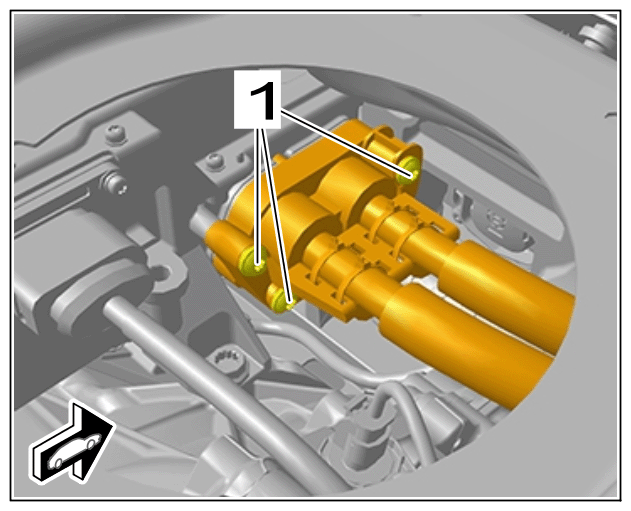

- Position electric plug connection and screw in and tighten screws -1-
.
> Tightening torque 8 Nm (5.9 ftlb.)
High-voltage line for rear electric motor
- Install body cover in rear luggage compartment. -1-
.
Body cover in rear luggage compartment
- Fill the (entire) air spring system.
- Start the high-voltage system.
> Refer to 2X00IN Isolate/start high-voltage system in the appropriate service information.
- Perform suspension alignment.
