Technical Values

Location	Description	Type	Basic value

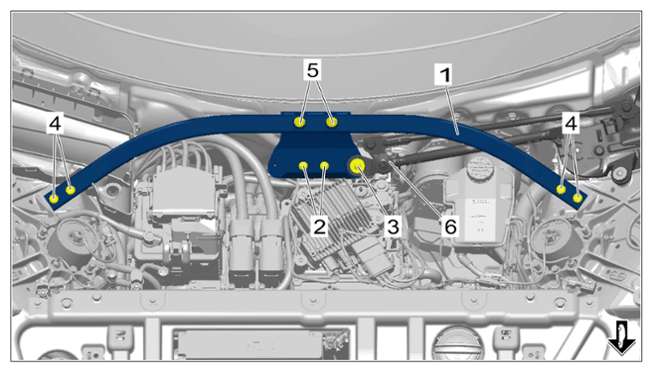

Strut to body	Screws/Item 5	Tightening torque	55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Strut to spring strut mount	Initial tightening/Screws/Item 4/Always replace screws following removal	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Strut to spring strut mount	Final tightening/Screws/Item 4/Always replace screw following removal	Torque angle
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Wiper linkage to strut	Screw/Item 3	Tightening torque	8.5 Nm (6.25 ftlb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Screw securing strut to body	Screws/Item 2	Tightening torque	8 Nm (6 ftlb.)

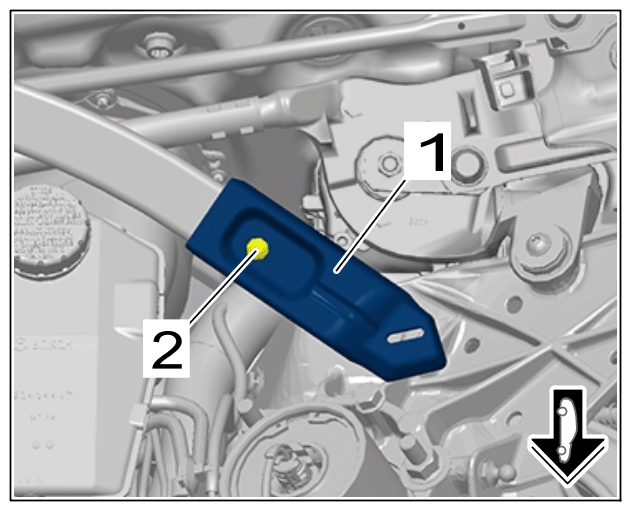

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover
Screw securing cover to left strut	Screw/Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover on strut
