Removing Strut

  1. Remove air inlet housing section -1-  .
    1. 1.1  Unclip holder -2-  .
    2. 1.2  Unclip clips -3-  , lift up air inlet housing section -1-  in -direction of arrow A-  and remove it in -direction of arrow B-  .

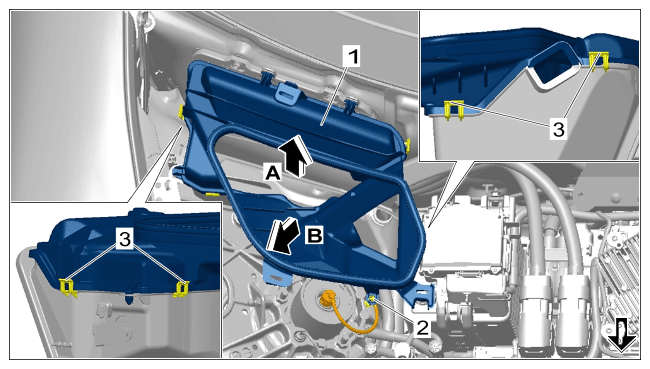

      G15552730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Air inlet housing section

  2. Remove cover on left strut -1-  .
    1. 2.1  Unscrew screw -2-  .
    2. 2.2  Remove cover on left strut -1-  .

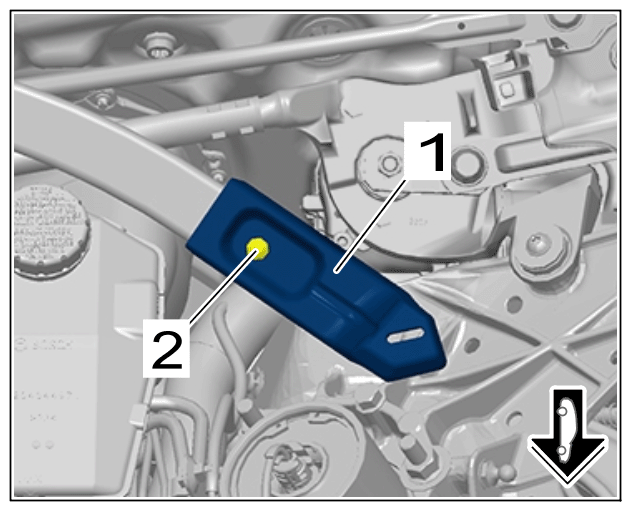

      G15552731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover on left strut

  3. Remove strut -1-  .
    1. 3.1  Unscrew screws -2 to 5-  .
    2. 3.2  Replace screw -4-  .
    3. 3.3  Lift up wiper linkage -6-  slightly and guide out and remove strut -1-  .

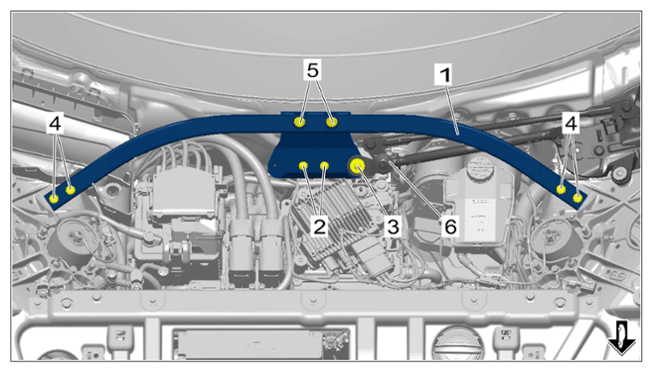

      G15552732Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Strut
