Installing Strut

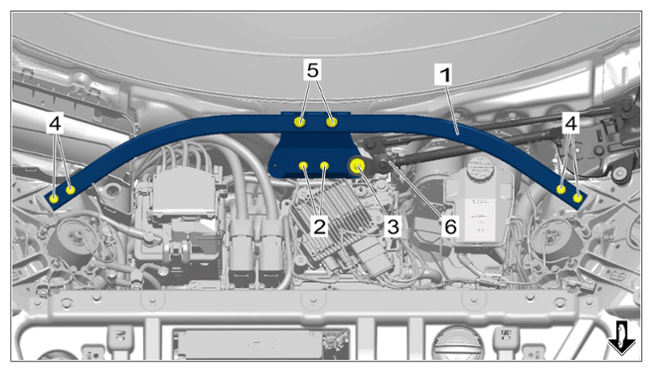

Install strut -1- .

1.1 Position strut -1- under the wiper linkage -6- .
1.2 Screw in screws -2 and 5- .
1.3 Screw in new screws -4- .
1.4 Tighten screws -2- .
> Tightening torque 8 Nm (6ftlb.)
1.5 Tighten screws -4- .
> Tightening torque 20 Nm (15 ftlb.)

> Torque angle + 90 °
1.6 Tighten screws -5- .
> Tightening torque 55 Nm (41 ftlb.)

1.7 Screw in and tighten screw -3- .

> Tightening torque 8.5 Nm (6.25 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut

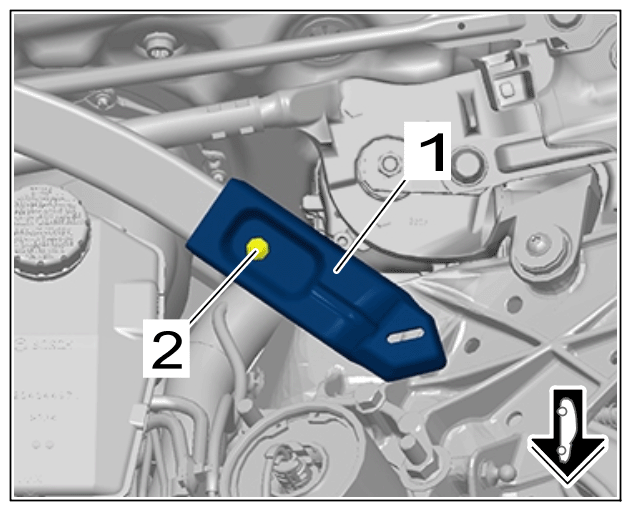

Install cover on left strut -1- .

2.2 Screw in and tighten screw -2- .

> Tightening torque 5 Nm (3.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on left strut

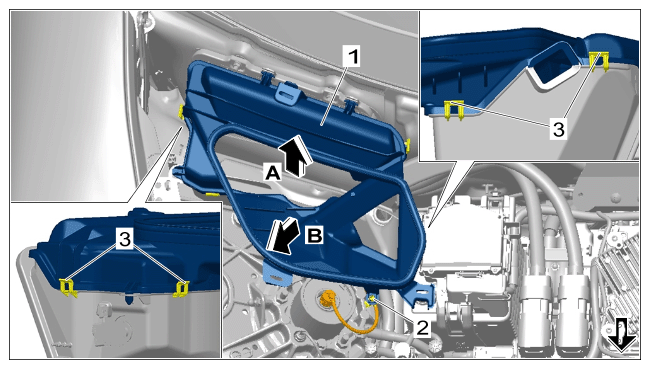

Install air inlet housing section -1- .

3.3 Clip in holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air inlet housing section
