Technical Values

Location	Description	Type	Basic value
Strut (dome strut) to spring strut mount	Initial tightening/Screws/Item 4/Always replace screws following removal	Tightening torque	30 Nm (22 ftlb.)

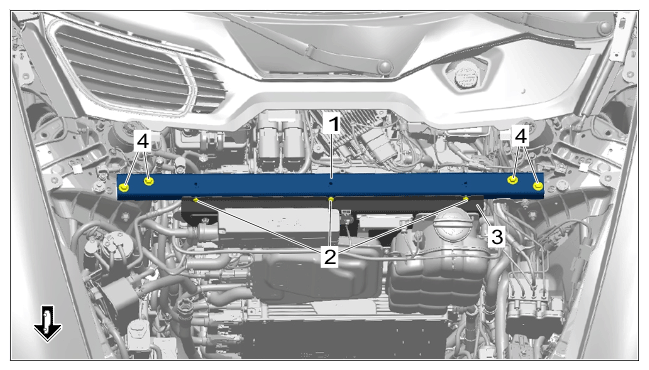

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut (dome strut)
Strut (dome strut) to spring strut mount	Final tightening/Screws/Item 4/Always replace screws following removal	Torque angle	+ 50 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut (dome strut)
Cross panel to strut (dome strut)	Screw/Item 2	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut (dome strut)
Screw securing evaporator (chiller) holder to body	Item 3	Tightening torque	8 Nm (6 flb.)

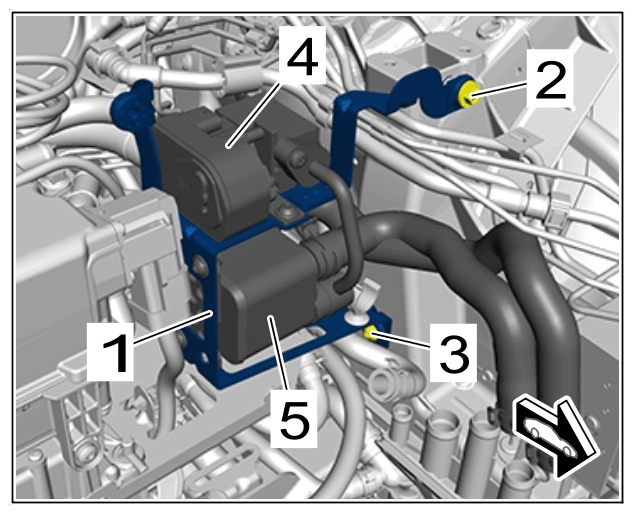

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Evaporator (chiller) holder
