Removing Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

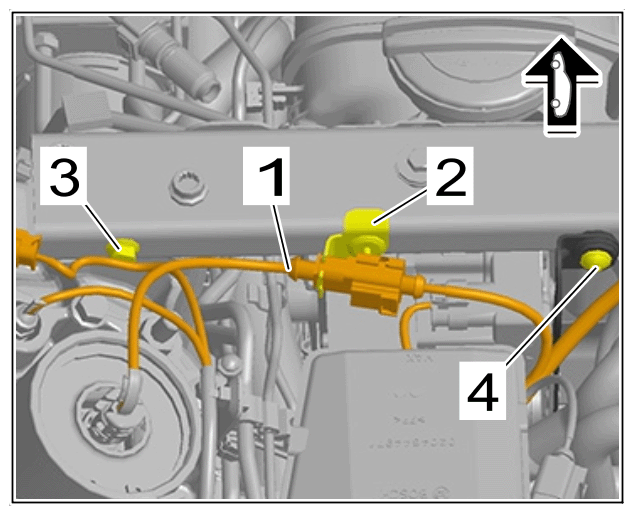

Electric lines on strut

1. 1.1  Remove electric plug connection -1-  from the bracket -2-  .
2. 1.2  Unclip clip -3-  on electric line from strut.
3. 1.3  Unscrew screw on bracket -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip on strut

1. 3.1  Unscrew screws -2-  from cross panel -3-  .
2. 3.2  Unscrew screws -4-  and replace them.
3. 3.3  Remove strut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

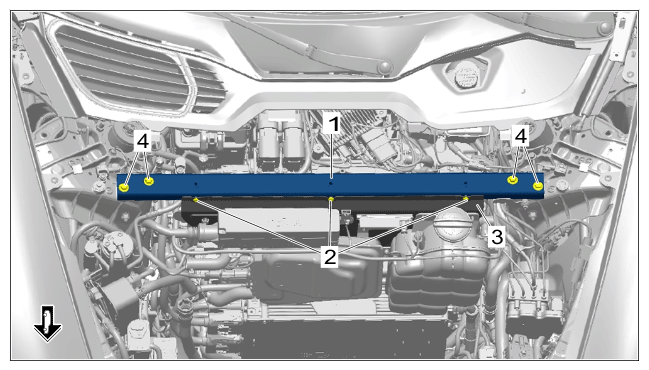

   Strut
