Installing Strut

Information

When installing the strut, make sure that the part ID is at the top.

1. Install strut -1-  .
   1. 1.1  Position strut -1-  on cross panel -3-  and screw in screws -2-  .
   2. 1.2  Screw in and tighten new  screws -4-  .

      > Tightening torque 30 Nm (22 ftlb.)

      > Torque angle + 50 °

   3. 1.3  Tighten screws -2-  .

      > Tightening torque 6 Nm (4.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

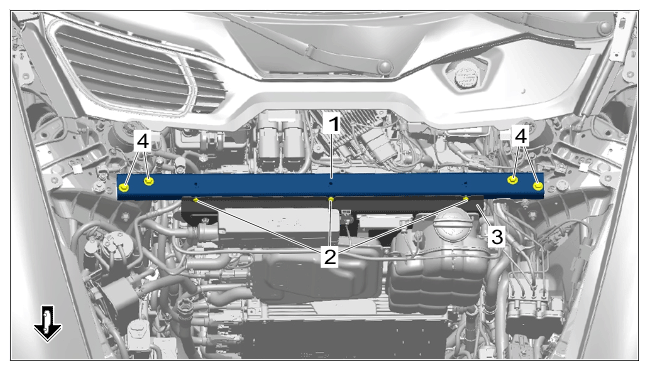

      Strut

2. Clip in clip -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

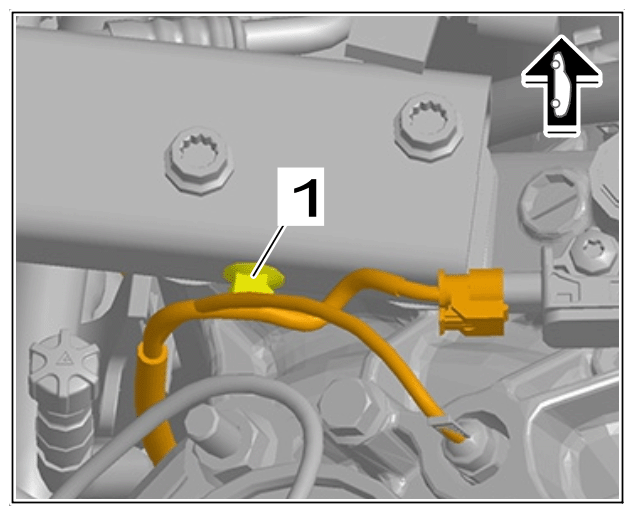

   Clip on strut

3. Secure electric lines and bracket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

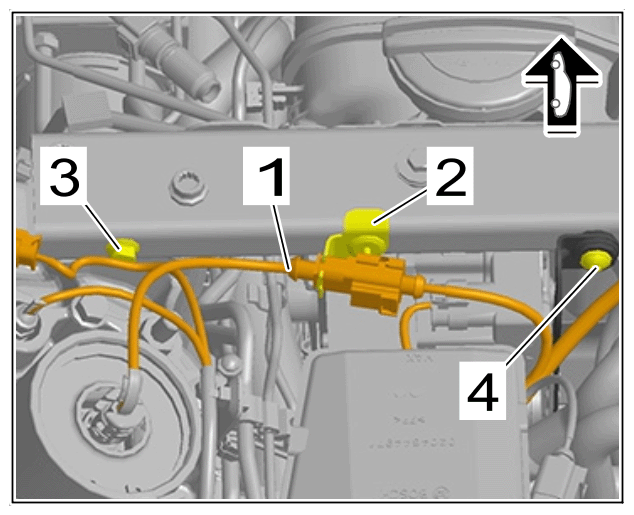

   Electric lines on strut

   1. 3.1  Screw in and tighten screw on bracket -4-  .

      > Tightening torque 8 Nm (6 ftlb.)

   2. 3.2  Clip in clip -3-  on electric line into strut.
   3. 3.3  Insert electric plug connections -1-  in holder -2-  .
