Assembling Front Spring Strut

Information

Do not fit the shock absorber cap at an angle!

1. Fit lower spring plate -1-  .
   1. 1.1  Position lower spring plate -1-  .
   2. 1.2  Carefully fit new  shock absorber cap -2-  on the shock absorber strut using a plastic hammer.

      Make sure not to fit the shock absorber cap at an angle.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

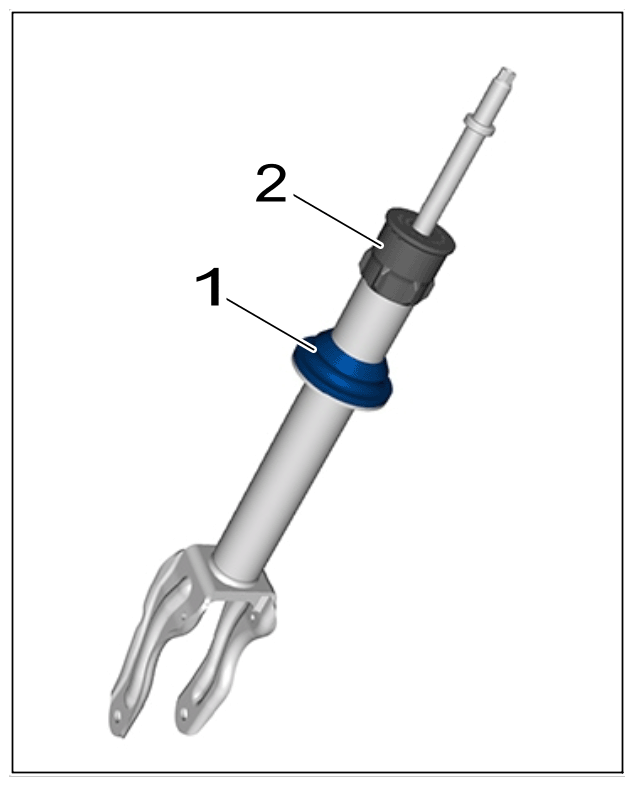

      Lower spring plate

2. Fit components -1 to 7-  on the shock absorber strut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

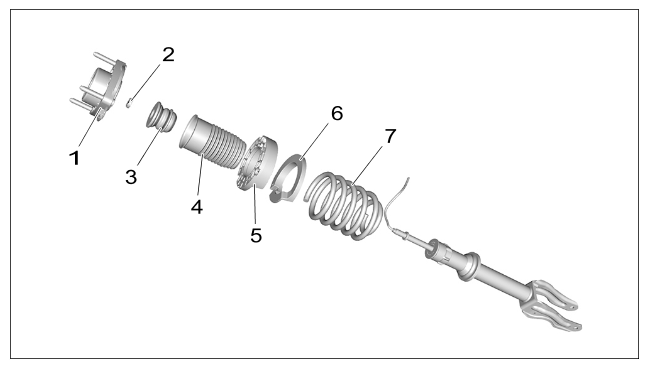

   Front spring strut

   1	Supporting mount
   2	Support washer
   3	Rubber stops
   4	Protective sleeve
   5	Insert
   6	Upper spring plate
   7	Coil spring

3. Align supporting mount -1-  with the spring strut fork -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

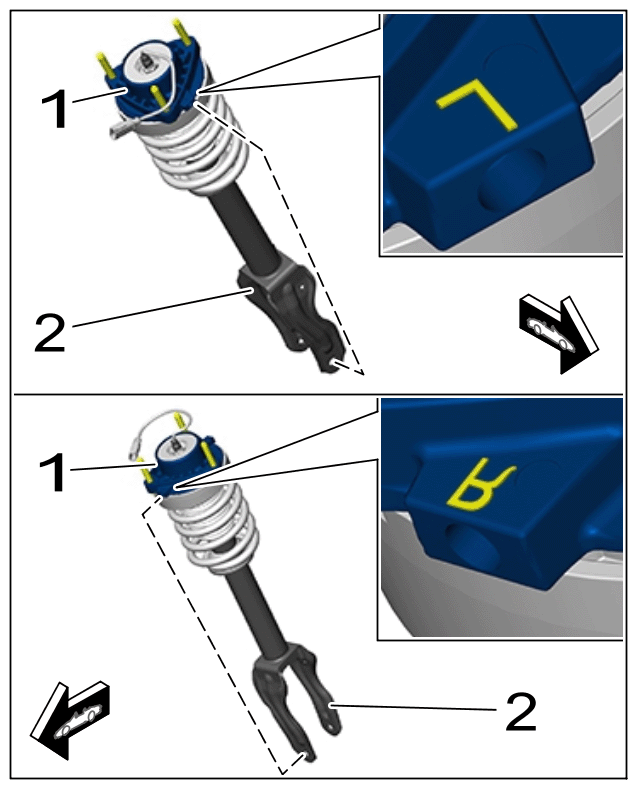

   Supporting mount

4. Secure supporting mount -1-  .
   1. 4.1  Clamp front spring strut in > VAS 6908 - spring tensioning device-2-  in such a way that the mounting plates of the spring tensioning device are positioned on the spring strut supporting mount.
   2. 4.2  Pre-tension front spring strut using > VAS 6908 - spring tensioning device-2-  until the piston rod -3-  is relieved.
   3. 4.3  Fit nut -4-  and tighten using > T10001 - shock absorber set-2-  or ring wrench (angled) while countering at the hexagon on the piston rod at the same time.

      > Tightening torque 53 Nm (38 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

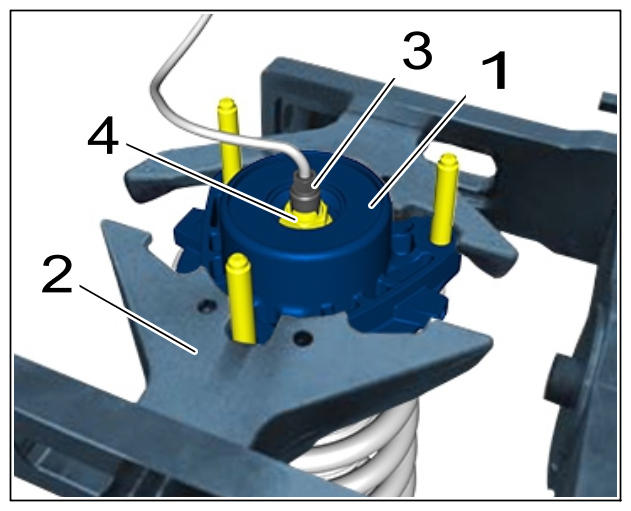

      Front spring strut in spring tensioning device

5. Relieve tension on front spring strut and remove it from > VAS 6908 - spring tensioning device  .
6. Connect connector housing -2-  and clip in cable guide -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

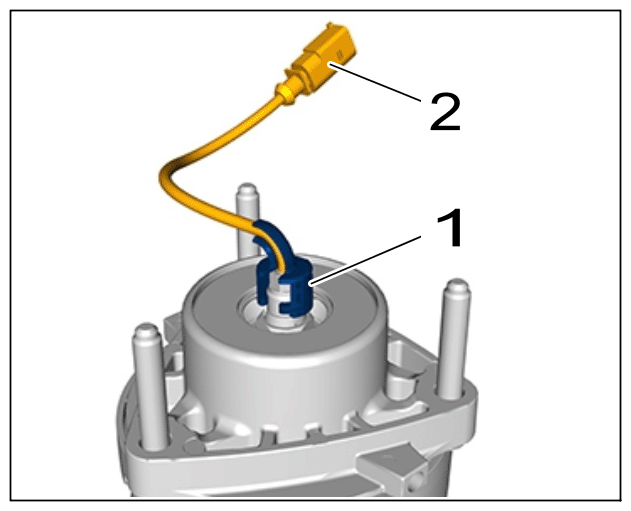

   PASM cable plug
