Technical Values

Location	Description	Type	Basic value

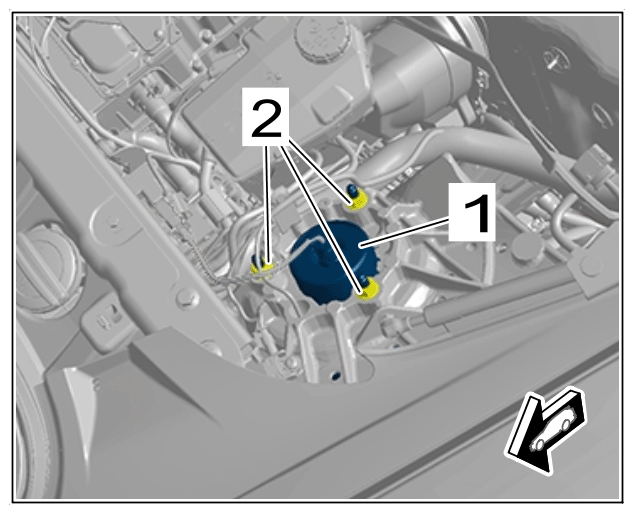

Sprint strut to body	Initial tightening/nuts/Item 2: Always replace nuts following removal	Tightening torque	40 Nm (30 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Spring strut to spring strut dome
Sprint strut to body	Final tightening/nuts/Item 2: Always replace nuts following removal	Angle	+ 45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Spring strut to spring strut dome

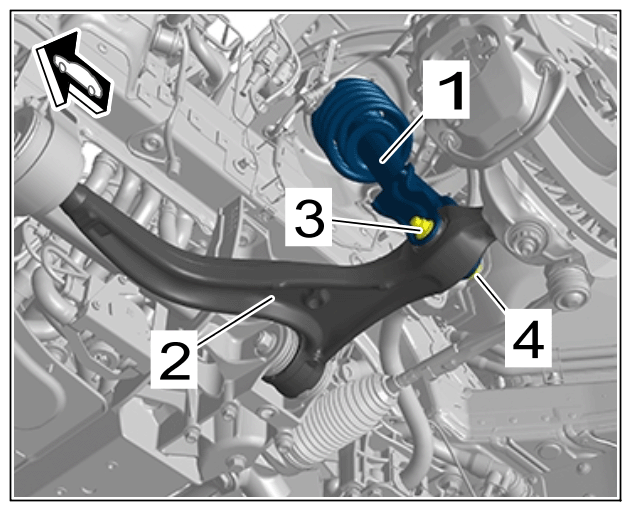

Sprint strut fork to lower trailing arm	Initial tightening/nuts/Item 3: Always replace threaded connection following removal	Tightening torque	90 Nm (67 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Spring strut
Sprint strut fork to lower trailing arm	Final tightening/nuts/Item 3: Always replace threaded connection following removal	Angle	+ 120 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring strut
