Subsequent Work

Information

The pictures shown in this document may differ from the original.

1. Install wheel bearing housing.

   > 405019 REMOVING AND INSTALLING WHEEL BEARING HOUSING

   WARNING: Wheel bearing housing raised incorrectly

   • Risk of crushing
   • Risk of damage to components
     • Wear personal protective gear.
     • Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).
2. Lift wheel suspension to zero position using > VAS 6931 - engine and gearbox jack  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

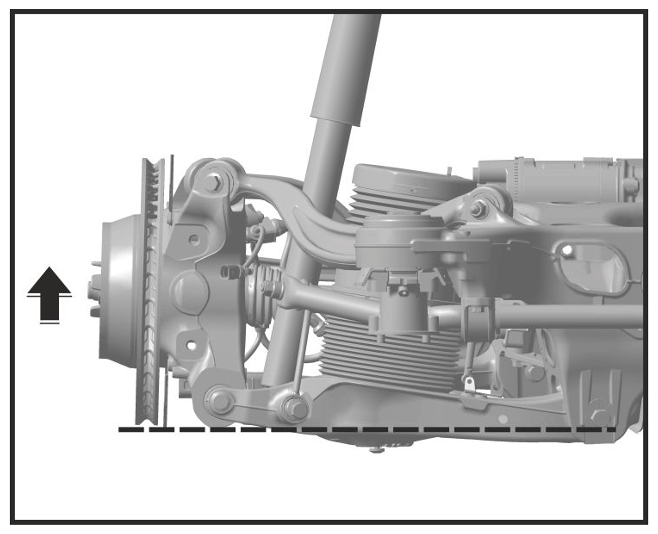

   Zero position (shown on rear axle as an example)

3. Tighten nut -3-  and counter at screw -4-  .

   > Tightening torque 90 Nm (67 ftlb.)

   > Angle + 120 °

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

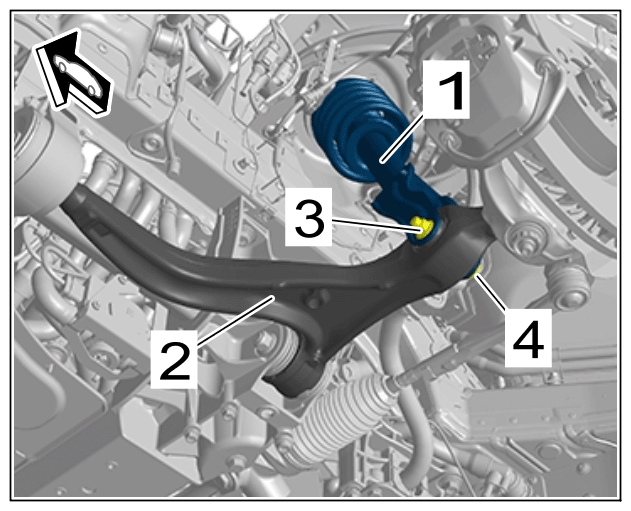

   Front spring strut to lower trailing arm

4. Install brake-disc air guide on front spring strut.

   > 461619 REMOVING AND INSTALLING BRAKE DISC AIR GUIDE (FRONT)

5. Install cowl panel cover.

   > 508719 REMOVING AND INSTALLING COWL PANEL COVER
