Technical Values

Location	Description	Type	Basic value
Anti-roll bar mount to axle frame	Screws/Item 4	Tightening torque	30 Nm (22 ftlb.)

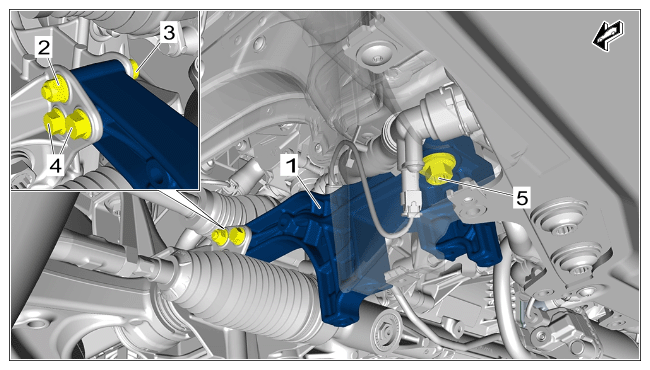

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar mount to axle frame	Nut/Screw/Item 2 and 3	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar mount to body	Initial tightening/Screw/Item 5/Always replace screw following removal.	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar mount to body	Final tightening/Screw/Item 5/Always replace screw following removal	Torque angle	+180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Front axle, rear to anti-roll bar mount	Initial tightening/Screws/Item 4/Always replace screws following removal	Tightening torque	20 Nm (15 ftlb.)

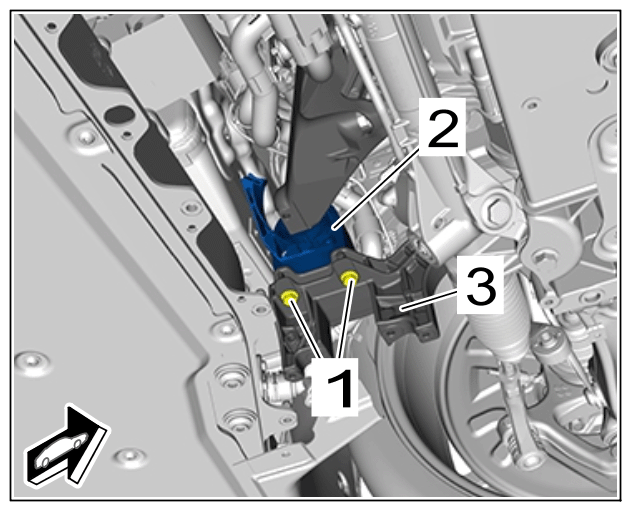

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear mounting saddle
Front axle, rear to anti-roll bar mount	Final tightening/Screws/Item 4/Always replace screws following removal	Torque angle	+ 45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear mounting saddle
Power-steering gear to front-axle carrier at the sides	Final tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 180 °

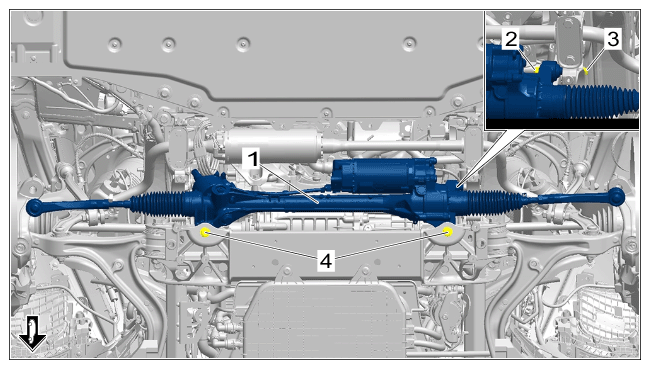

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Steering shaft to power-steering gear	Initial tightening/Screw/Item 2/Always replace screw following removal.	Tightening torque	20 Nm (15 ftlb.)

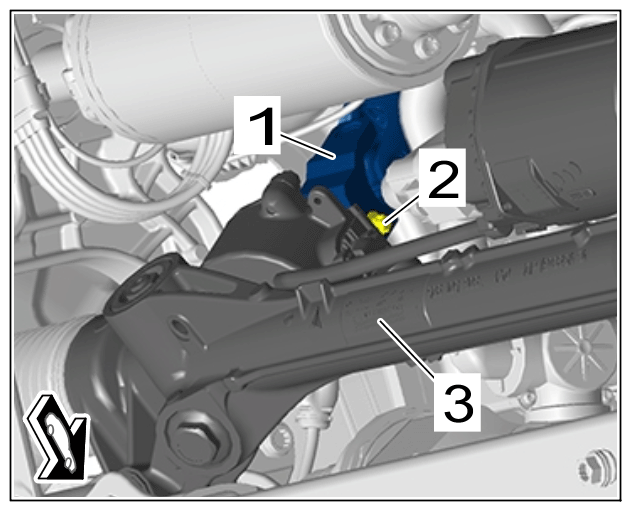

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for steering column

Location	Description	Type	Basic value
Anti-roll bar mount to axle frame	Screws/Item 4	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar mount to axle frame	Nut/Screw/Item 2 and 3	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar mount to body	Initial tightening/Screw/Item 5/Always replace screw following removal.	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Anti-roll bar mount to body	Final tightening/Screw/Item 5/Always replace screw following removal	Torque angle	+180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar mount
Replacement structure frame to anti-roll bar mount	Initial tightening/Screws/Item 3/Always replace screws following removal	Tightening torque	20 Nm (15 ftlb.)

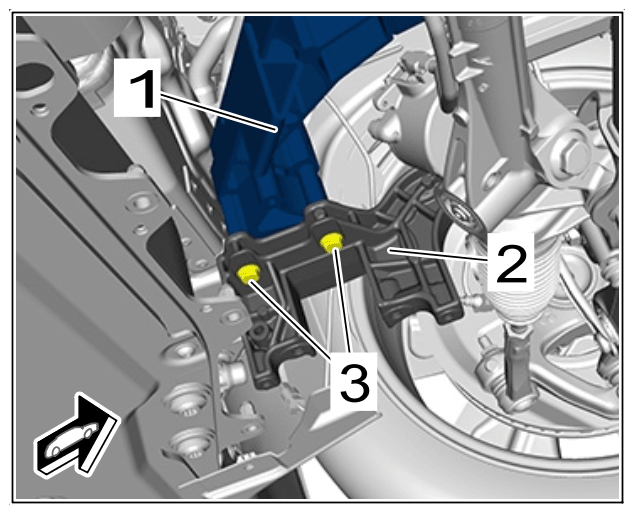

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Replacement structure frame
Replacement structure frame to anti-roll bar mount	Final tightening/Screws/Item 3/Always replace screws following removal	Torque angle	45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Replacement structure frame
Power-steering gear to front-axle carrier at the sides	Final tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 180 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power-steering gear
Steering shaft to power-steering gear	Initial tightening/Screw/Item 2/Always replace screw following removal.	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Universal joint for steering column
