Subsequent Work

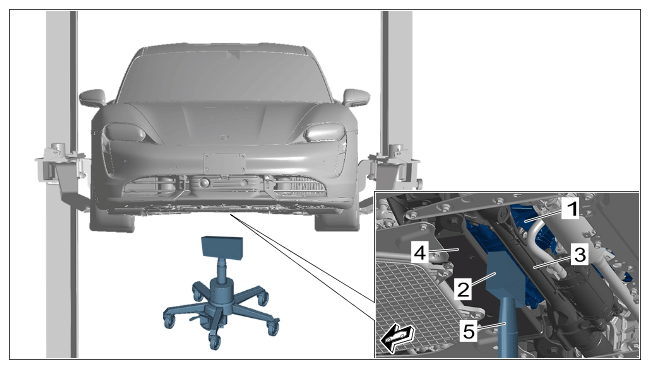

  1. > VAS 6931 - Engine and gearbox jack-5-  and plastic block -2-  can now be removed.
    G15552663Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Support for electric motor

  2. Install front anti-roll bar.

    > 407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR

  3. Vehicles with PDCC:

    Secure front anti-roll bar.

    > 407709 LOOSENING AND SECURING FRONT ANTI-ROLL BAR (PDCC)



  1. Install front anti-roll bar.

    > 407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR

    > 407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR (PDCC)
