Removing Right Anti-Roll Bar Mount

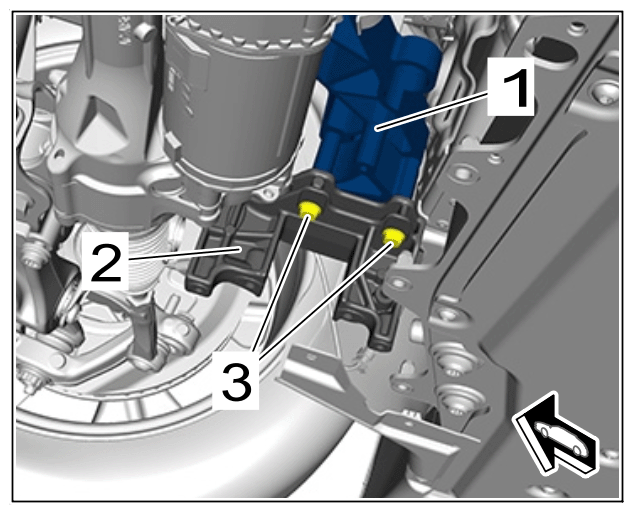

  1. Loosen frame for replacement structure -1-  from the right anti-roll bar mount -2-  .
    1. 1.1  Support frame for replacement structure at a suitable position using > VAS 6931 - transmission and engine jack  .
    2. 1.2  Unscrew and remove screws -3-  .
      G15552678Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Replacement structure frame

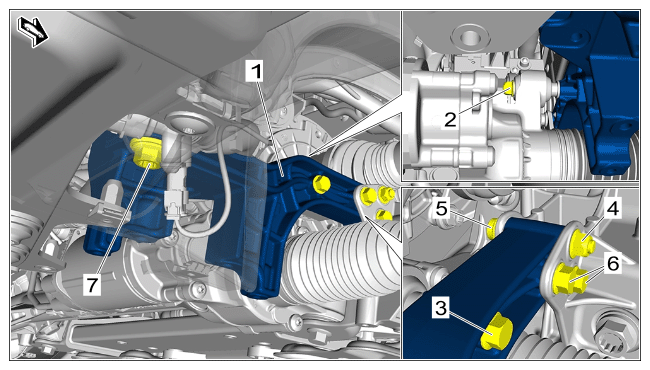

  2. Remove anti-roll bar mount -1-  at the right.
    1. 2.1  Unscrew nut -2-  and counter at screw -3-  at the same time.
    2. 2.2  Remove screw -3-  .
    3. 2.3  Unscrew nut -4-  and counter at screw -5-  at the same time.
    4. 2.4  Remove screw -5-  .
    5. 2.5  Unscrew and remove screws -6-  .
    6. 2.6  Unscrew screw -7-  .
    7. 2.7  Remove right anti-roll bar mount -1-  .
      G15552679Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Right anti-roll bar mount
