Removing Fight Anti-Roll Bar Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

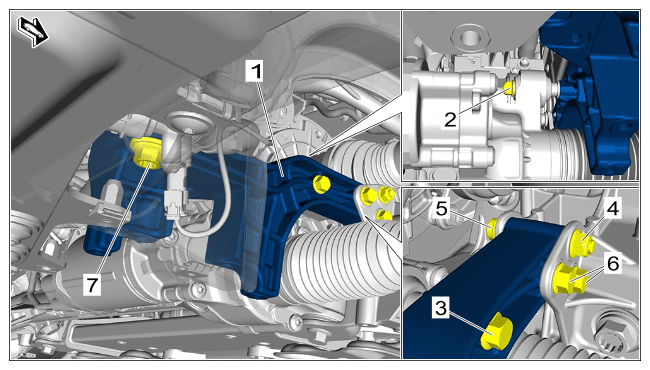

Right mounting saddle

1. 2.1  Unscrew nut -2-  and counter at screw -3-  at the same time.
2. 2.2  Remove screw -3-  .
3. 2.3  Unscrew nut -4-  and counter at screw -5-  at the same time.
4. 2.4  Remove screw -5-  .
5. 2.5  Unscrew and remove screws -6-  .
6. 2.6  Unscrew screw -7-  .
7. 2.7  Remove right anti-roll bar mount -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

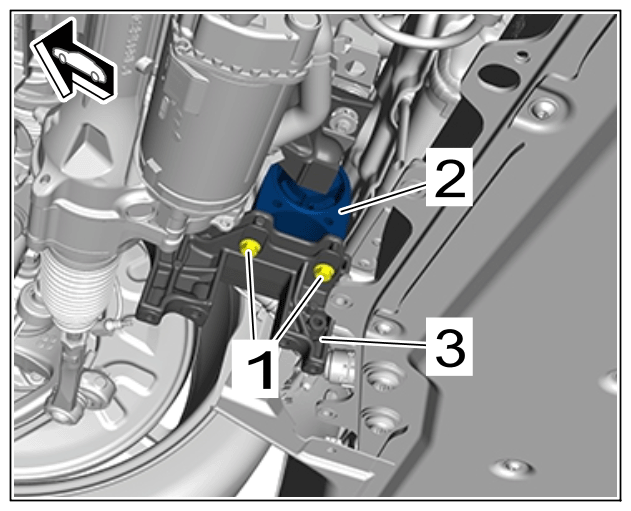

   Right anti-roll bar mount
