Installing Left Anti-Roll Bar Mount

1. 1.1  Position left anti-roll bar mount -1-  .
2. 1.2  Screw in new  screw -5-  , but do not tighten yet.
3. 1.3  Screw in screws -4-  , but do not tighten yet.
4. 1.4  Insert screw -3-  .
5. 1.5  Screw on nut -2-  , tighten using > 9768 - electronic torque wrench, 2 - 100 Nm (1.5 - 74 ftlb.)  and counter at screw -3-  at the same time.

   > Tightening torque 30 Nm (22 ftlb.)

6. 1.6  Tighten screws -4-  using > 9768 - electronic torque wrench, 2 - 100 Nm (1.5 - 74 ftlb)  .

   > Tightening torque 30 Nm (22 ftlb.)

7. 1.7  Tighten screw -5-  using > VAS 6942 - digital torque wrench, 20-400 Nm (15-296 ftlb.)  .

   > Tightening torque 70 Nm (52 ftlb.)

   > Torque angle +180 °

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

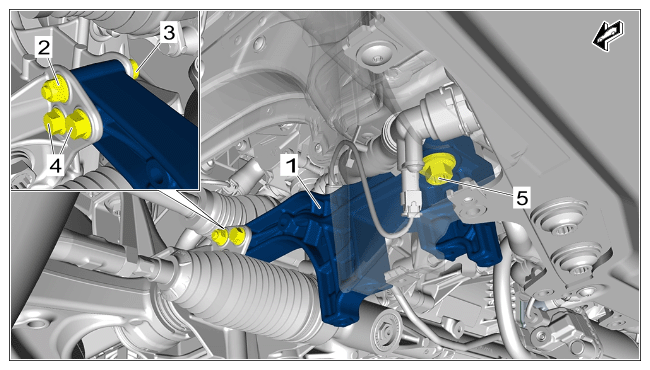

   Left anti-roll bar mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

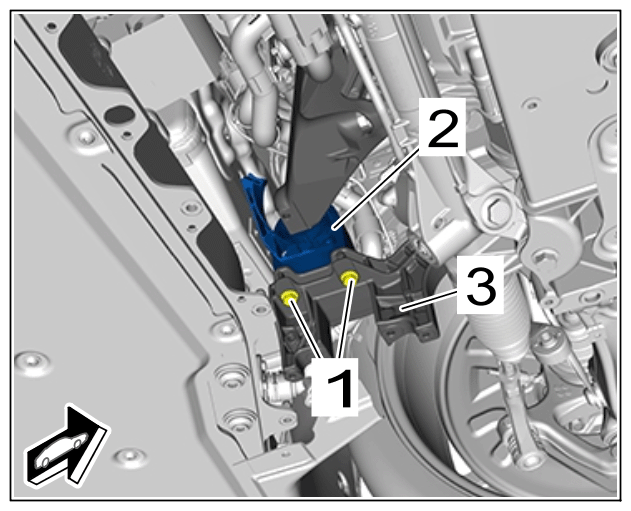

Left mounting saddle

1. 2.1  Fit new  screws -1-  and tighten using > 9768 - electronic torque wrench, 2 - 100 Nm (1.5 - 74 ftlb.)  .

   > Tightening torque 20 Nm (15 ftlb.)

   > Torque angle + 45 °

1. 1.1  Position left anti-roll bar mount -1-  .
2. 1.2  Screw in new  screw -5-  , but do not tighten yet.
3. 1.3  Screw in screws -4-  , but do not tighten yet.
4. 1.4  Insert screw -3-  .
5. 1.5  Screw on nut -2-  , tighten using > 9768 - electronic torque wrench, 2 - 100 Nm (1.5 - 74 ftlb.)  and counter at screw -3-  at the same time.

   > Tightening torque 30 Nm (22 ftlb.)

6. 1.6  Tighten screws -4-  using > 9768 - electronic torque wrench, 2 - 100 Nm (1.5 - 74 ftlb.)  .

   > Tightening torque 30 Nm (22 ftlb.)

7. 1.7  Tighten screw -5-  using > VAS 6942 - torque/torque angle wrench, 20-400 Nm (15-296 ftlb.)  .

   > Tightening torque 70 Nm (52 ftlb.)

   > Torque angle +180 °

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Left anti-roll bar mount

1. 2.1  Screw in new  screws -3-  .
2. 2.2  Remove > VAS 6931 - transmission and engine jack  from frame for replacement structure -1-  .
3. 2.3  Tighten screws -3-  using > 9768 - electronic torque wrench, 2 - 100 Nm (1.5 - 74 ftlb.)  .

   > Tightening torque 20 Nm (15 ftlb.)

   > Torque angle 45 °

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

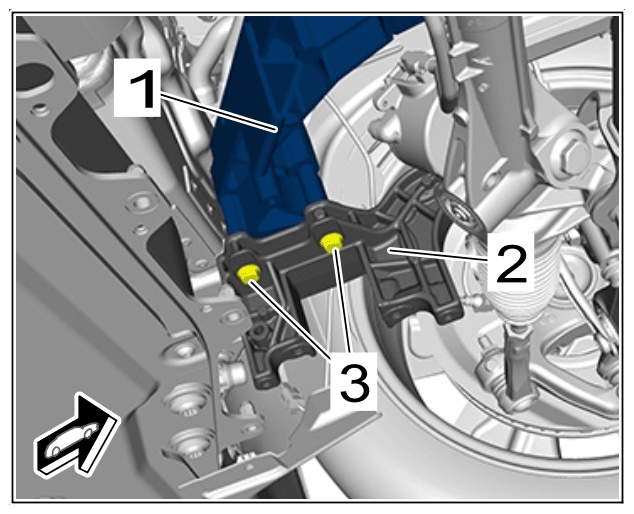

   Replacement structure frame
