Technical Values

Location	Description	Type	Basic value
Anti-roll bar to connecting link	Initial tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal!	Tightening torque	70 Nm (52 ftlb.)

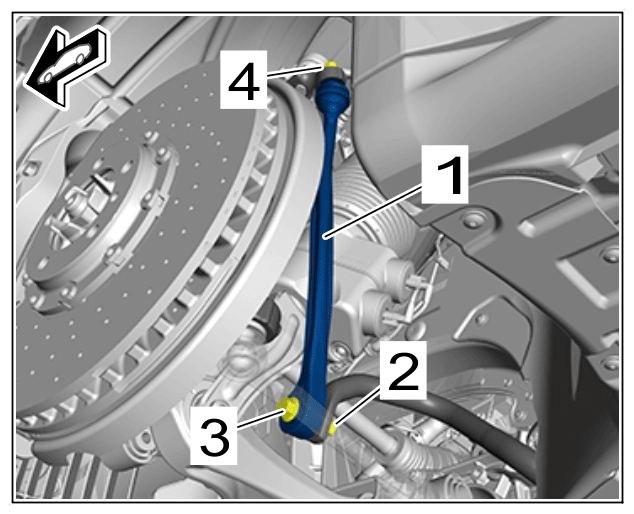

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
Anti-roll bar to connecting link	Final tightening/Screw/Nut/Item 2 and 3/Always replace threaded connection following removal!	Torque angle	+90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
Connecting link to wheel bearing housing	Initial tightening/Nut/Item 4/Always replace nut following removal!	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
Connecting link to wheel bearing housing	Final tightening/Nut/Item 4/Always replace nut following removal!	Torque angle	+45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
