Removing Connecting Link For Anti-Roll Bar

  1. Remove connecting link for anti-roll bar -1-  .
    1. 1.1  Unscrew nut -2-  and counter at screw -3-  at the same time.
    2. 1.2  Unscrew nut -4-  and counter at the internal Torx of the upper threaded pin at the same time.
    3. 1.3  Remove connecting link for anti-roll bar -1-  .

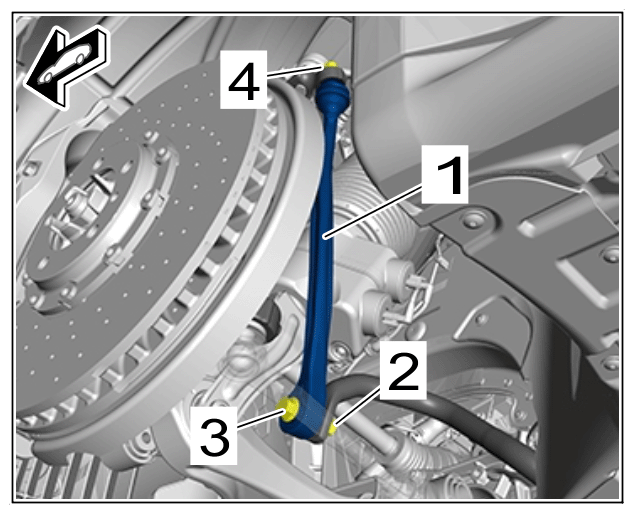

      G15552639Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Connecting link for anti-roll bar
