Installing Connecting Link For Anti-Roll Bar

Information

The pictures shown in this document may differ from the original.

WARNING: Wheel bearing housing raised incorrectly

Risk of crushing
Risk if damage to components
- Wear personal protective gear.
- Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Threaded joints must only be tightened in zero position to prevent warping in the bearings.

Lift the wheel suspension to zero position using lifting equipment (e.g. > VAS 6931 - Transmission and Engine Jack) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Zero position (shown on rear axle as an example)

Install connecting link for anti-roll bar -1- .

2.1 Position connecting link for anti-roll bar -1- .
2.2 Fit and tighten nut -4- and counter at the internal Torx of the upper threaded pin at the same time.
> Tightening torque 20 Nm (15 ftlb.)

> Torque angle +45 °

2.3 Position screw -3- , fit and tighten nut -2- and counter at the screw -3- at the same time.

> Tightening torque 70 Nm (52 ftlb.)

> Torque angle +90 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

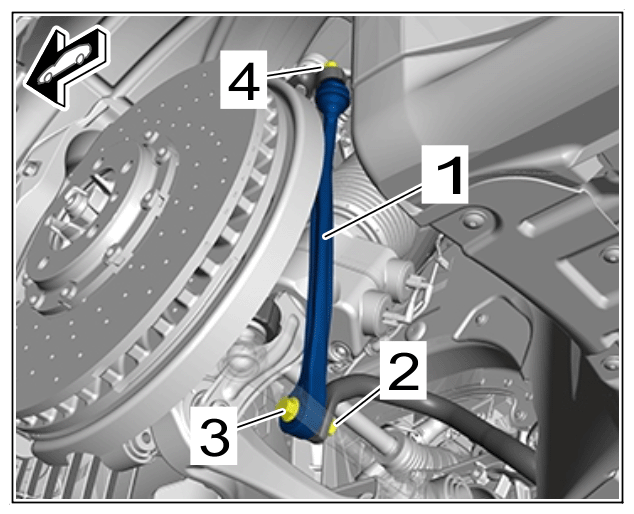

Connecting link for anti-roll bar
