Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Anti-roll bar clamp to anti-roll bar mount Initial tightening/Screws/Item 2/Always replace screws following removal Tightening torque 50 Nm (37 ftlb.)

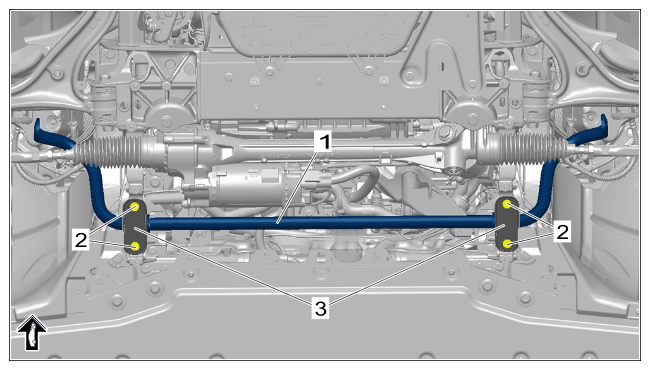

G15552628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar

Anti-roll bar clamp to anti-roll bar mount Final tightening/Screws/Item 2/Always replace screws following removal Torque angle + 30 °
G15552629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar
