Removing Front Anti-Roll Bar

  1. Remove front anti-roll bar -1-  .
    1. 1.1  Unscrew screws -2-  and remove anti-roll bar clamps -3-  .
    2. 1.2  Guide anti-roll bar -1-  down out of the vehicle.

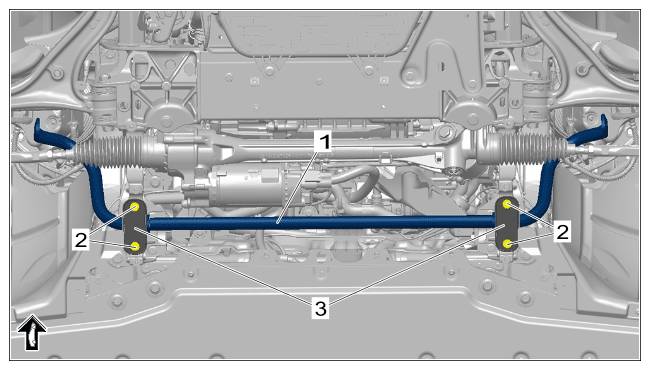

      G15552631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Anti-roll bar
