Installing Front Anti-Roll Bar

  1. Install front anti-roll bar -1-  .
    1. 1.1  Position front anti-roll bar -1-  .
    2. 1.2  Position anti-roll bar clamps -3-  .
    3. 1.3  Screw in and tighten new  screws -2-  .

      > Tightening torque 50 Nm (37 ftlb.)

      > Torque angle + 30 °

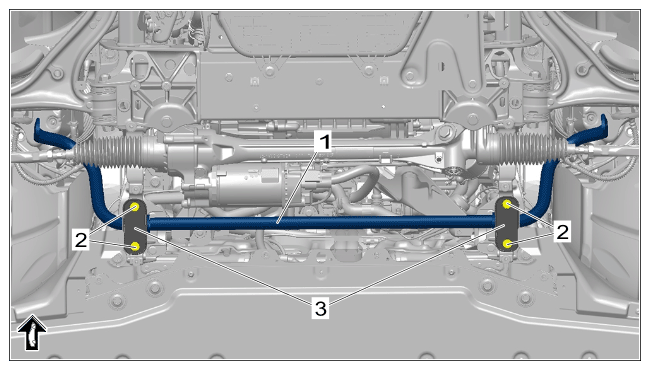

      G15552632Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Anti-roll bar
