Technical Values

Location	Description	Type	Basic value
Anti-roll bar clamp to anti-roll bar mount	Initial tightening/Screws/Item 5/Always replace screws following removal	Tightening torque	50 Nm (37 ftlb.)

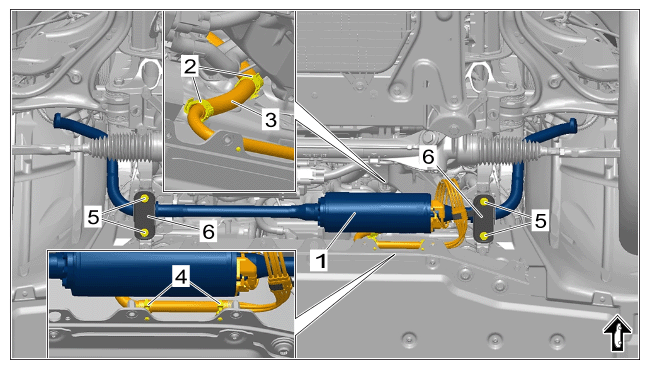

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar (PDCC)
Screw for anti-roll bar clamp	Final tightening/Screws/Item 5/Always replace screws following removal	Torque angle	+ 30 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar (PDCC)
Screw securing electric line for PDCC to PDCC control unit	Screw/Item 2	Tightening torque	5.6 Nm (4 ftlb.)

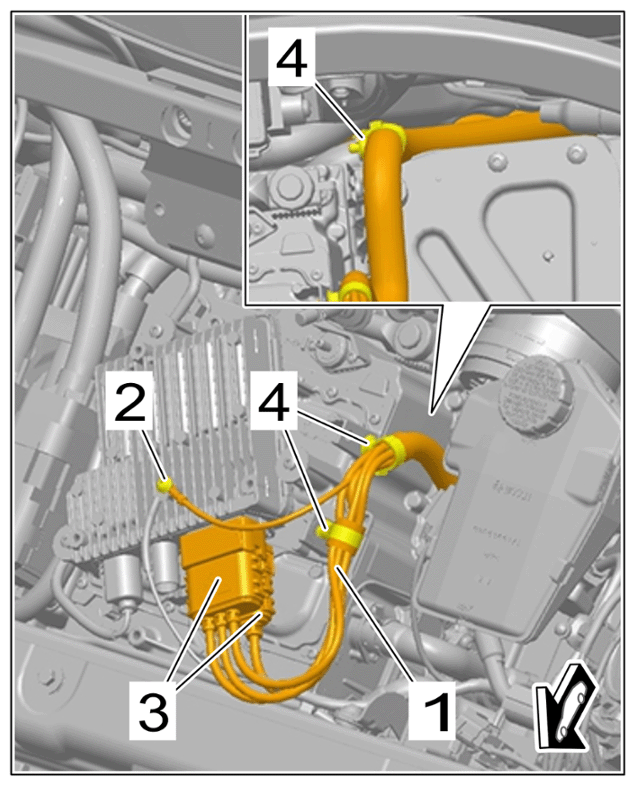

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric wiring harness for anti-roll bar
