Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

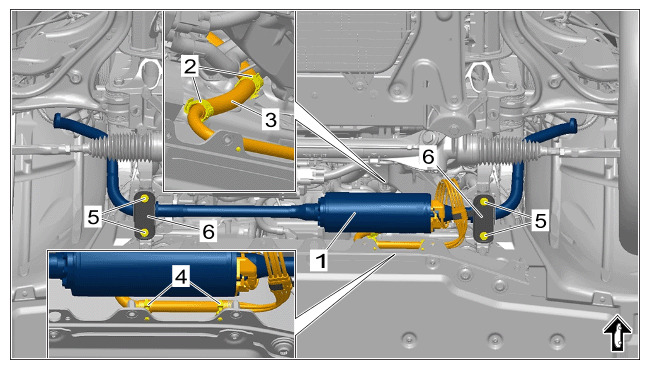

| Anti-roll bar clamp to anti-roll bar mount | Initial tightening/Screws/Item 5/Always replace screws following removal | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Anti-roll bar (PDCC) |
|||||
| Screw for anti-roll bar clamp | Final tightening/Screws/Item 5/Always replace screws following removal | Torque angle | + 30 ° | ||
|
Anti-roll bar (PDCC) |
