Loosening And Securing Front Anti-Roll Bar

Information

The PDCC system can be active when operational readiness is established (even when the vehicle is stationary). To avoid injury/crushing, only work near the anti-roll bar, lower trailing arms and bellows of the steering gear when operational readiness is deactivated and always allow for the run-on time of 60 seconds.

Information

The help of another person is required.

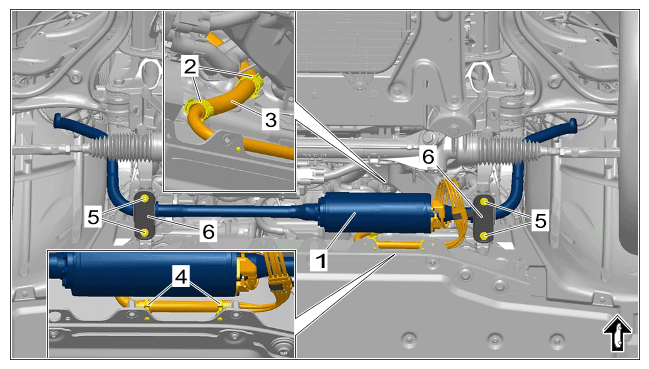

1. Loosen anti-roll bar -1-  .
   1. 1.1  Only open the lower  retaining clip -2-  .
   2. 1.2  Unclip clips -4-  for wire harness for anti-roll bar -3-  at the battery cover.
   3. 1.3  Unscrew screws -5-  and remove anti-roll bar clamps -6-  together with holders.
   4. 1.4  Guide anti-roll bar -1-  downwards out of the vehicle, getting another person to help you to do this.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Anti-roll bar (PDCC)

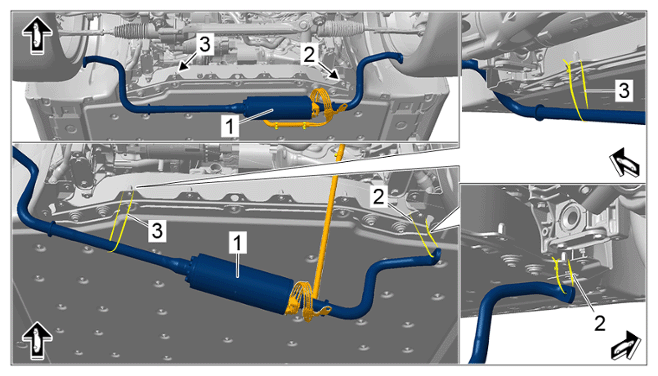

2. Suspend the anti-roll bar -1-  with two tie-wraps -2 and 3-  on the outside of the high-voltage battery cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Anti-roll bar mount (PDCC)

   Information

   The help of another person is required.

3. Secure the anti-roll bar -1-  .
   1. 3.1  Get another person to hold the anti-roll bar -1-  and loosen/disconnect tie-wraps.
   2. 3.2  Clip clips -4-  for wire harness for anti-roll bar -3-  onto the high-voltage battery cover.
   3. 3.3  Fit electric wire harness for anti-roll bar -3-  in lower retaining clip -2-  and close the clip -2-  .
   4. 3.4  Position anti-roll bar -1-  on the connecting links and lower mountings.
   5. 3.5  Insert anti-roll bar clamps -6-  together with holders.
   6. 3.6  Fit and tighten new  screws -5-  .

      > Tightening torque 50 Nm (37 ftlb.)

      > Torque angle + 30 °

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Anti-roll bar (PDCC)
