Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Wheel bearing plate to front wheel bearing housing | Initial tightening/Screws/Item 3/Always replace screws following removal. | Tightening torque | 20 Nm (15 ftlb.) | ||
|

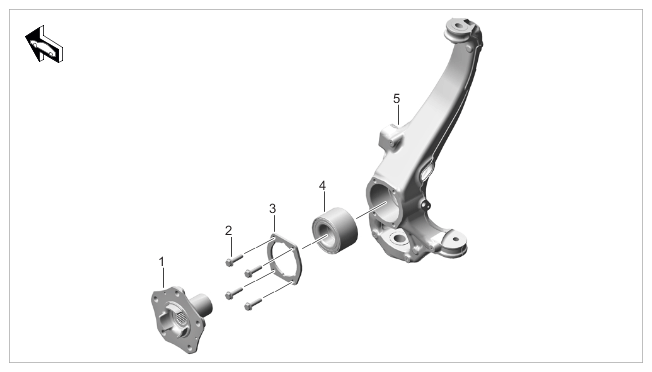

Component overview of wheel bearing |
|||||
| Wheel bearing plate to front wheel bearing housing | Final tightening/Screws/Item 3/Always replace screws following removal. | Torque angle | + 90 ° | ||
|
Component overview of wheel bearing |
|||||
| Heating wheel bearing housing | Before pressing in wheel bearing | Temperature | 80 °C |
