Component Information

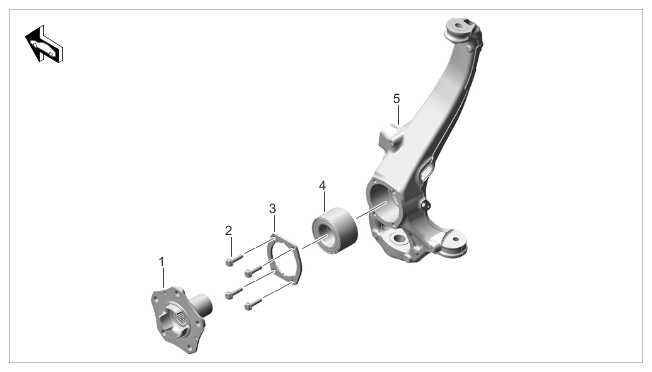

Fig 1: Overview Of Wheel Bearing Components Location
G15552601Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of wheel bearing (example)

1  Wheel hub
2  Hexagon-head bolt, M8 x 35
3  Mounting plate
4  Wheel bearing
5  Wheel bearing housing
