WM, 405041 Repairing Front Wheel Bearing Housing: Tools

Tool denomination	Type	Tool number	Image
Brake Calliper Repair Set	Vehicle-specific workshop equipment	> VAS 6627A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
thread repair kit, M14 x 1.5	Vehicle-specific workshop equipment	> VAS 6627/9	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

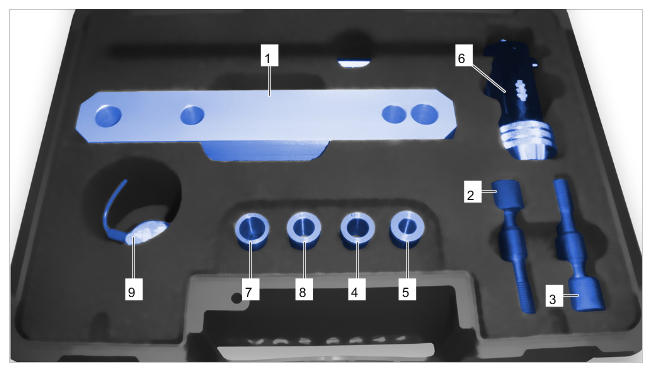

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Assembly aid
2	Fastening screw, M12
3	Fastening screw, M14
4	Guide sleeve, M12 - internal diameter: 12.25 mm
5	Guide sleeve, m12 - internal diameter: 10.00 mm
6	Threading die holder
7	Guide sleeve, M14 - internal diameter: 14.50 mm
8	Guide sleeve, M14 - internal diameter: 12.20 mm
9	Cutting oil
