Technical Values

Location	Description	Type	Basic value
Front drive shaft to wheel hub	Item 1: Replace/lock nuts	Tightening torque	460 Nm

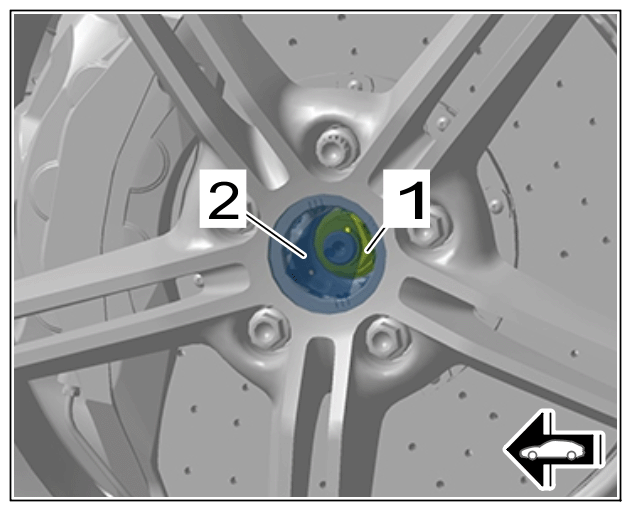

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lock nut for drive shaft/axle journal
Line bracket to wheel bearing housing	Screws/Item 3 and 4	Tightening torque	8 Nm (6 ftlb.)

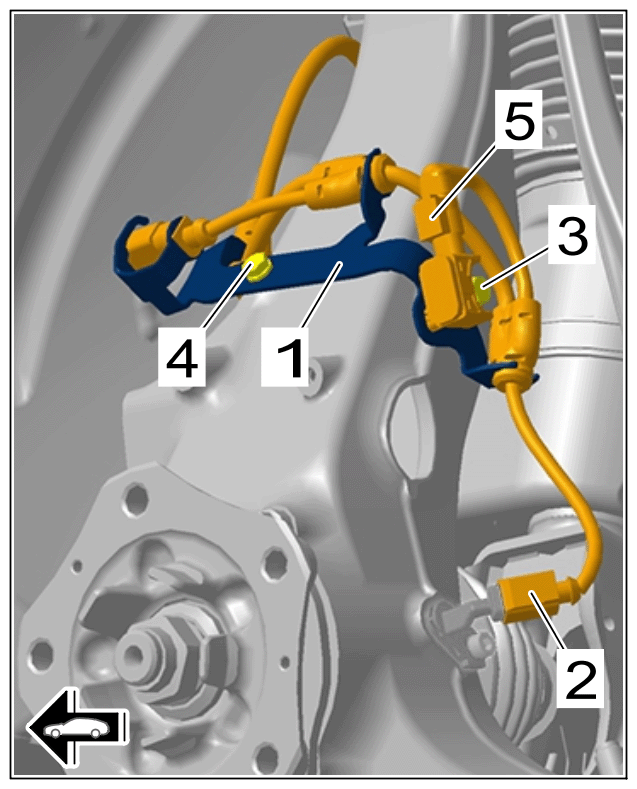

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Brake cover panel to wheel bearing housing	Screws/Item 2	Tightening torque	8 Nm (6 ftlb.)

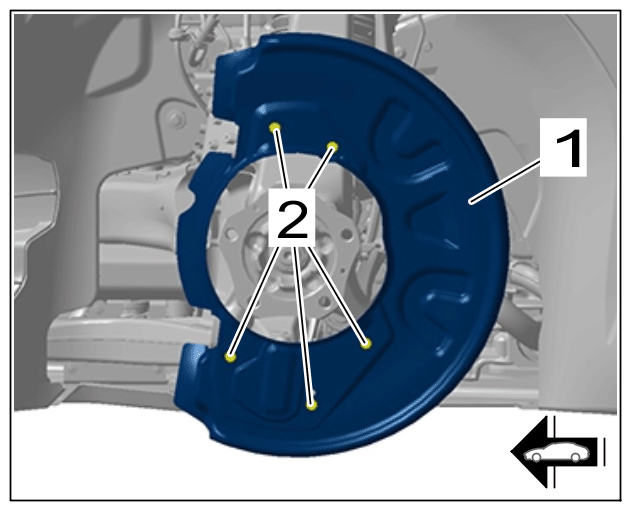

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake cover panel
Tie-rod ball to wheel bearing housing	Nut/Item 3	Tightening torque	85 Nm (63 ftlb.)

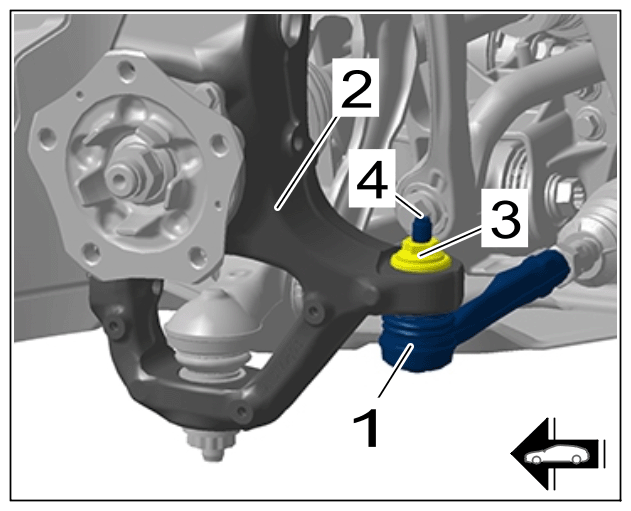

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tie-rod ball
Lower trailing arm to wheel bearing housing	Nut or axle joint/Item 3	Tightening torque	130 Nm (96 ftlb.)

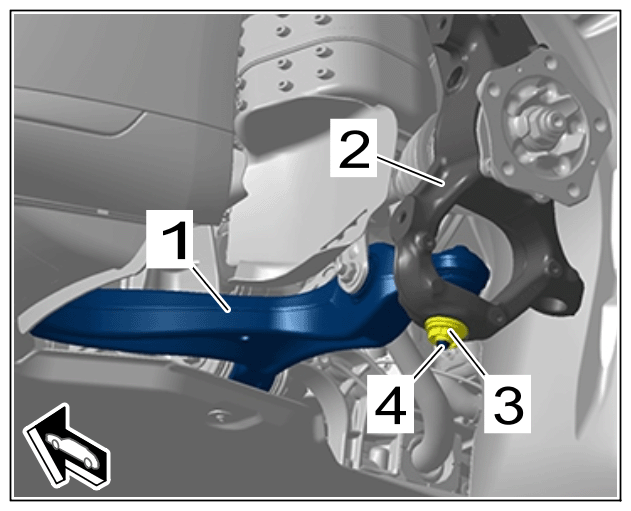

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control arm
Upper trailing arm clamp on wheel bearing housing	Initial tightening/Nut/Item 3/Always replace threaded connection following every removal.	Tightening torque	20 Nm (14.8 ftlb.)

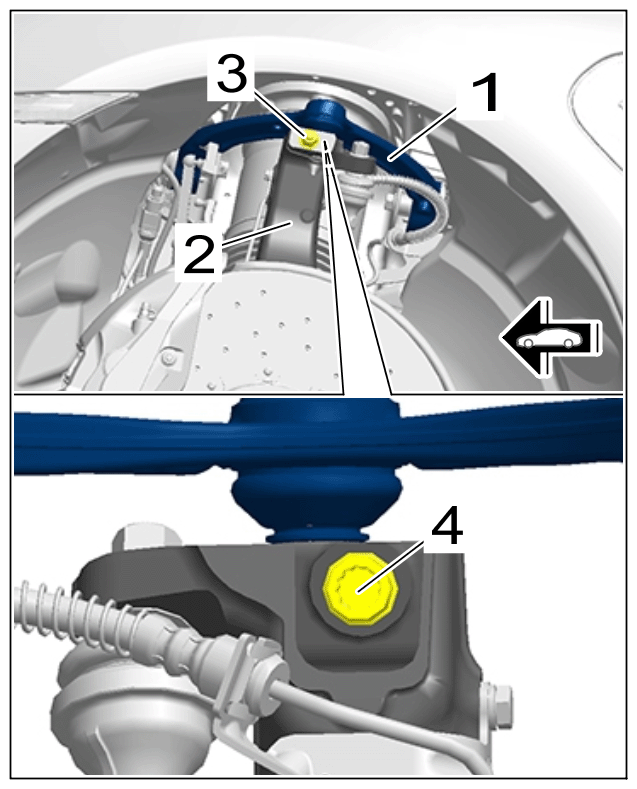

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper trailing arm on wheel bearing housing
Upper trailing arm clamp on wheel bearing housing	Final tightening/Nut/Item 3/Always replace threaded connection following every removal.	Torque angle	+ 45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper trailing arm on wheel bearing housing
