- Install connecting link for anti-roll bar.
> 407819 REMOVING AND INSTALLING CONNECTING LINK FOR ANTI-ROLL BAR
- Install front brake disc.
> 465019 REMOVING AND INSTALLING FRONT BRAKE DISC
> 465119 REMOVING AND INSTALLING FRONT PCCB BRAKE DISC
- Fit wheel.
> 440519 REMOVING AND INSTALLING WHEEL
- Fill the levelling system.
> 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM
- Lower the vehicle.
> 4X00IN LIFTING THE VEHICLE
- section on "Subsequent work"
- For vehicles with all-wheel drive:
Tighten nut on drive shaft.
Information
The help of another person is required.
- 6.1
Get another person to help by pressing the brake.
- 6.2

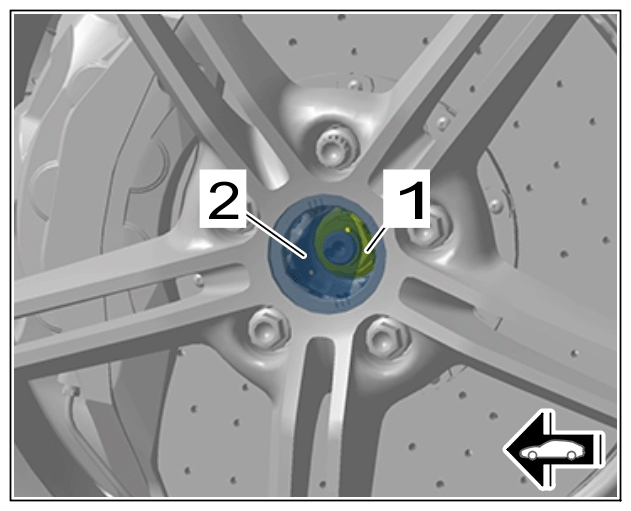

Tighten nut on drive shaft -1-
.
> Tightening torque 460 Nm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Nut on drive shaft
- Perform suspension alignment.
> 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
- Install hub cap.
> 441519 REMOVING AND INSTALLING HUB CAPS
