Replacing Hydraulic Mount

  1. Remove stop washer -1-  .
    1. 1.1  Unscrew screw -2-  and remove stop washer -1-  .

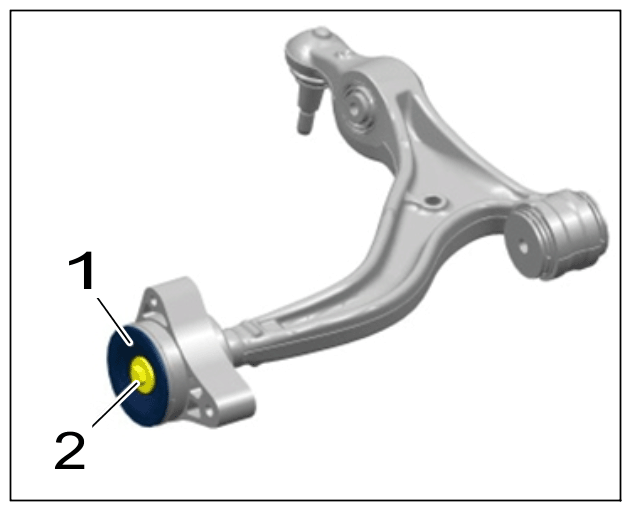

      G15552545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Stop washer

    WARNING: Mechanical, hydraulic or pneumatic press
    • Risk of squashing
      • Read specific safety information for the press.
      • Check that the press is working perfectly before use, particularly the safety components.
    WARNING: Danger of objects or loads falling down
    • Risk of squashing or crushing
      • Secure components to prevent them from falling down.

    Information

    Tighten separating device only as far as required so that the trailing arm is not damaged!

  2. Press off hydraulic mount -2-  .
    1. 2.1  Place a suitable aid (e.g. foam) under the workshop press as the trailing arm will fall to the floor after you press it out.
    2. 2.2  > VAS 251 413 - Separating device-3-  must be aligned on the trailing arm in such a way that the core of the hydraulic mount is flat against the jaws of the separating device -A-  .
    3. 2.3  > VW411 - Pressure pad-1-  must be centred on the trailing arm.
    4. 2.4  Press off hydraulic mount -2-  .

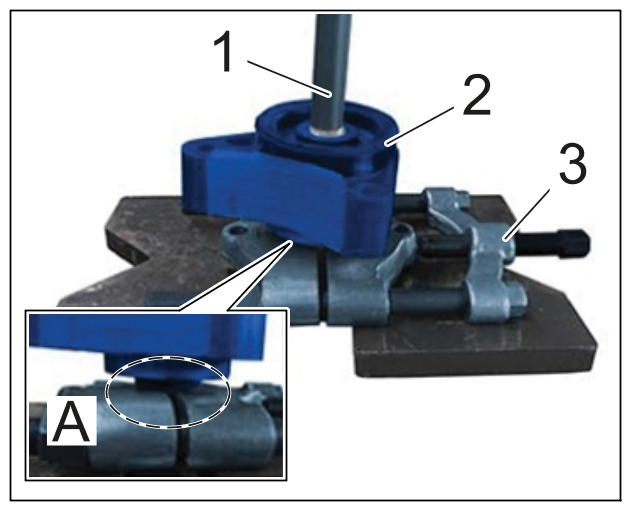

      G15552546Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Hydraulic mount

    1  > VW411 - Pressure pad
    2  Hydraulic mount
    3  > VAS 251 413 - Separating device
  3. Press on new  hydraulic mount -1-  using > 9891 - press-on tool  .
    1. 3.1  Guide threaded rod of > 9891 - press-on tool  into the hydraulic mount -1-  and screw it into the threaded bore on the trailing arm.

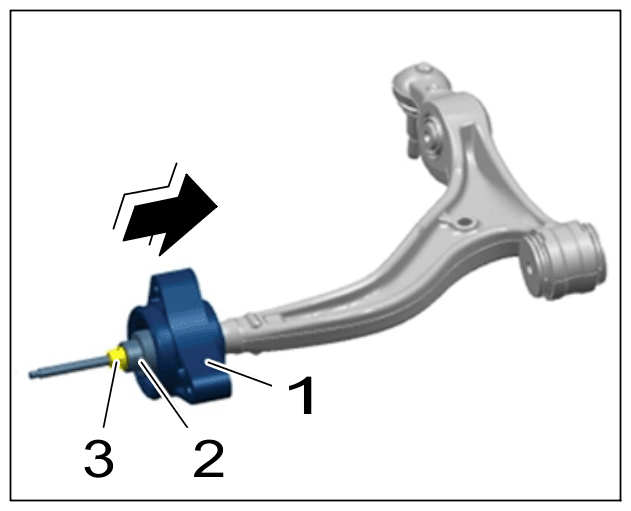

      G15552547Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Hydraulic mount

  4. Align hydraulic mount with the trailing arm according to the position marking -A-  .

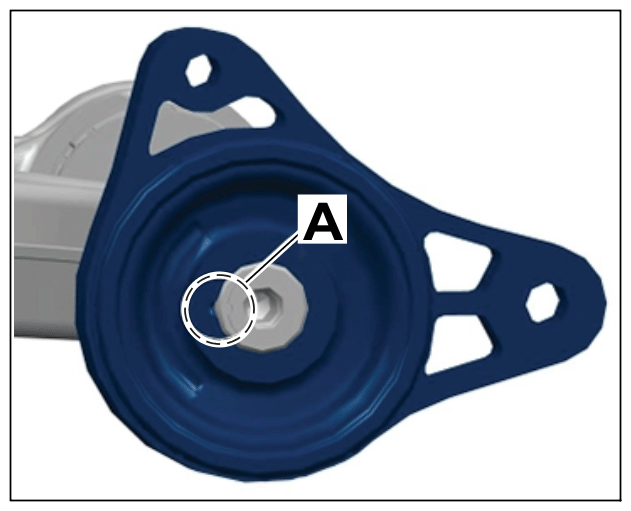

    G15552548Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Aligning hydraulic mount

  5. Fit pressure piece -2-  at the centre and slowly press hydraulic mount -3-  on as far as it will go by screwing on the nut -1-  in -direction of arrow-  .
    G15552549Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hydraulic mount

  6. > 9891 - Press-on tool  must now be removed.
  7. Fit stop washer -1-  .
    1. 7.1  Position stop washer -1-  .
    2. 7.2  Screw in and tighten screw -2-  .

      > Tightening torque 95 Nm (70 ftlb.)

      G15552550Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Stop washer
