Technical Values

Location	Description	Type	Basic value

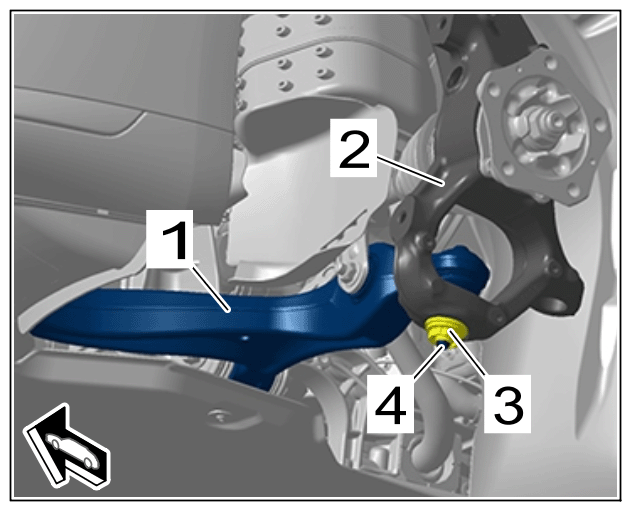

Lower trailing arm to wheel bearing housing	Nut on axle joint/Item 3	Tightening torque	130 Nm (96 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control arm

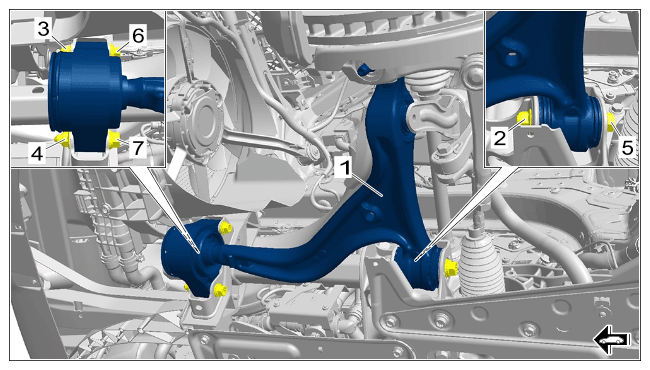

Lower trailing arm to front-axle carrier	Rear Screw/Nut/Item 2 and 5	Tightening torque	160 Nm (118 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower trailing arm
Lower trailing arm to front-axle carrier	Bottom - Screw/Nut/Item 4 and 7	Tightening torque	100 Nm (74 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower trailing arm
Lower trailing arm to front-axle carrier	Top - Screw/Nut/Item 3 and 6	Tightening torque	55 Nm (41 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower trailing arm
