Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

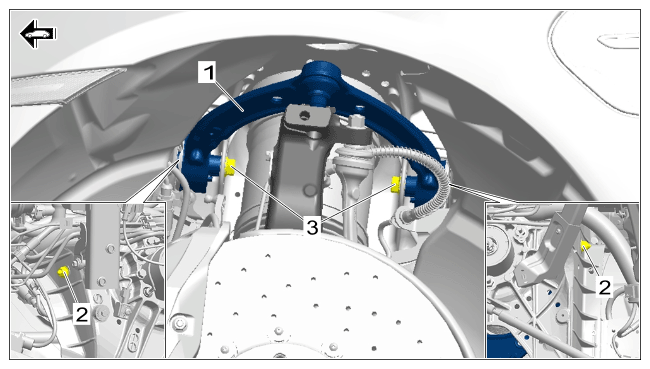

| Upper trailing arm on body | Initial tightening/Nut/Item 2/Always replace threaded connection following every removal. | Tightening torque | 50 Nm (36.9 ftlb.) | ||
|
Upper trailing arm |
|||||
| Upper trailing arm on body | Final tightening/Nut/Item 2/Always replace threaded connection following every removal. | Torque angle | + 120 ° | ||
|
Upper trailing arm |
|||||

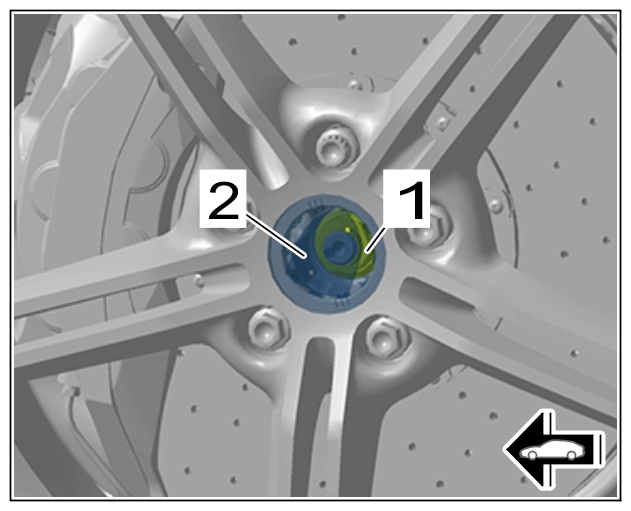

| Front drive shaft to wheel hub | Item 1: Replace/lock nuts | Tightening torque | 460 Nm | ||
|
Lock nut for drive shaft/axle journal |
|||||
| Drive shaft/front axle journal to wheel hub - Step 1 | Initial tightening of new M22 lock nut | Initial tightening | 200 Nm | ||
| Drive shaft/front axle journal to wheel hub - Step 2 | Initial tightening of new M22 lock nut | torque angle | + 100 ° | ||
| Drive shaft/front axle journal to wheel hub - Step 3 | Initial tightening of new M22 lock nut | Loosening | - 360 ° | ||
| Drive shaft/front axle journal to wheel hub - Step 4 | Initial tightening of new M22 lock nut | Initial tightening | 200 Nm | ||
| Drive shaft/front axle journal to wheel hub - Step 5 | Initial tightening of new M22 lock nut | Final tightening torque angle | + 100 ° |
