Subsequent Work

Install front spring strut.
> 433019 REMOVING AND INSTALLING AIR-SPRING STRUT FRONT

> 408519 REMOVING AND INSTALLING FRONT SPRING STRUT
Installing front level sensor.
> 431819 REMOVING AND INSTALLING FRONT LEVEL SENSOR
Fitting front wheel.
> 440519 REMOVING AND INSTALLING WHEEL
Installing cowl panel cover.
> 508719 REMOVING AND INSTALLING COWL PANEL COVER
Installing luggage compartment liner.
> 501919 REMOVING AND INSTALLING LUGGAGE COMPARTMENT LINER
Only for vehicles with air suspension system: Filling the level control .
> 430117 BLEEDING AND FILLING THE LEVEL CONTROL

Information

The help of another person is required.

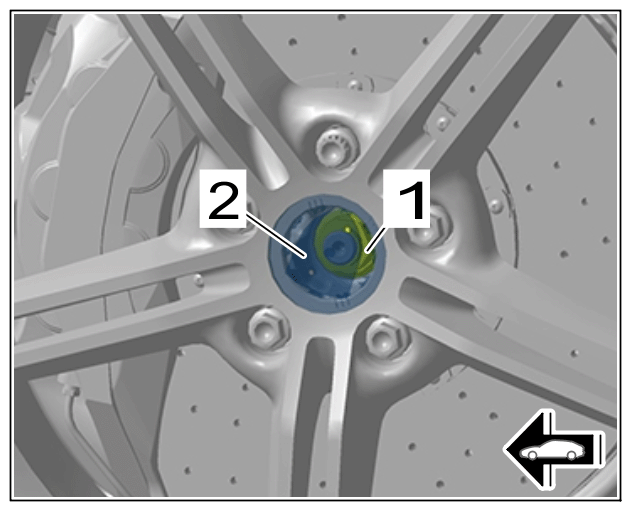

Tighten new lock nut on -1- drive shaft/axle journal (2WD).
IMPORTANT: After replacing the drive shaft or axle journal, observe initial tightening specifications!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock nut for drive shaft/axle journal
1. 7.1 Get another person to help by pressing the brake.
2. 7.2 Tighten new lock nut on -1- drive shaft/axle journal.
  > Tightening torque 460 Nm
3. 7.3 Initial tightening of new lock nut after replacing drive shaft or axle journal:
  - > Initial tightening 200 Nm
  - > torque angle + 100 °
  - > Loosening - 360 °
  - > Initial tightening 200 Nm
  - > Final tightening torque angle + 100 °
Perform suspension alignment.
> 449503 PERFORMING VEHICLE FRONT AND REAR SUSPENSION ALIGNMENT
Installing wheel trim cover.
> 441519 REMOVING AND INSTALLING WHEEL TRIM COVERS - SECTION ON "INSTALLING"
