Removing Upper Trailing Arm

  1. Removing upper trailing arm -1-
    1. 1.1  Unscrew nut -2-  and counter at screw -3-  at the same time.
    2. 1.2  Remove screws -3-  , replace nut -2-  and screw -3-  .
    3. 1.3  Remove upper trailing arm -1-  .

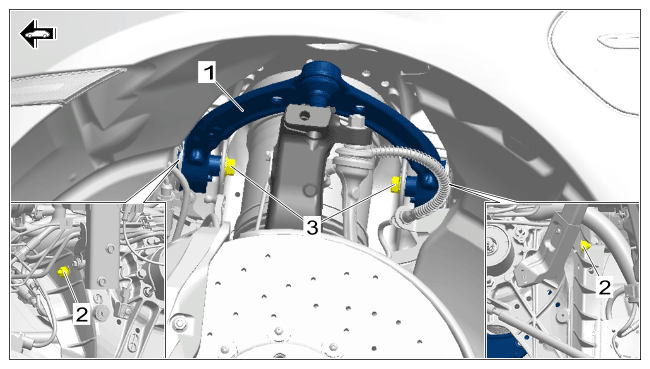

      G15552516Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Upper trailing arm
