Preliminary Work

Information

Once PDCC is ready for operation, chassis adjustments can be made. To avoid injury/crushing, only work near the anti-roll bar, lower trailing arms and bellows of the steering gear without establishing operational readiness and always allow for the run-on time of 60 seconds.

1. Remove wheel trim cover.

   > 441519 REMOVING AND INSTALLING WHEEL TRIM COVERS - section on "Removing"

   Information

   The help of another person is required.

2. Loosen lock nut on -1-  drive shaft or axle journal (2WD).
   1. 2.1  Get another person to help by pressing the brake.
   2. 2.2  Loosening the lock nut -1-

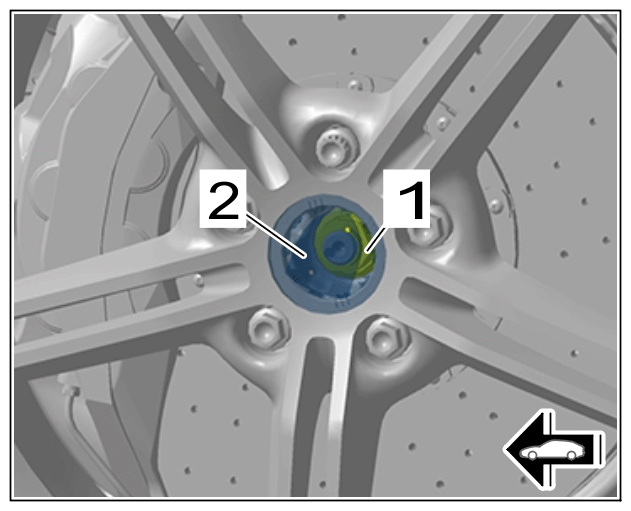

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Lock nut for drive shaft/axle journal

3. Raising the vehicle.

   > WM, 4X00IN LIFTING THE VEHICLE

4. Only for vehicles with air suspension system:  Release air from the levelling system.

   > 430117 BLEED AND FILL THE LEVEL CONTROL

5. Remove luggage compartment liner.

   > 501919 REMOVING AND INSTALLING LUGGAGE COMPARTMENT LINER

6. Removing cowl panel cover.

   > 508719 REMOVING AND INSTALLING COWL PANEL COVER

7. Removing front wheel.

   > 440519 REMOVING AND INSTALLING WHEEL

8. Removing front level sensor.

   > 431819 REMOVING AND INSTALLING FRONT LEVEL SENSOR

9. Removing front spring strut.

   > 433019 REMOVING AND INSTALLING AIR-SPRING STRUT FRONT

   > 408519 REMOVING AND INSTALLING FRONT SPRING STRUT
