Install Upper Trailing Arm

Information

The help of another person is required.

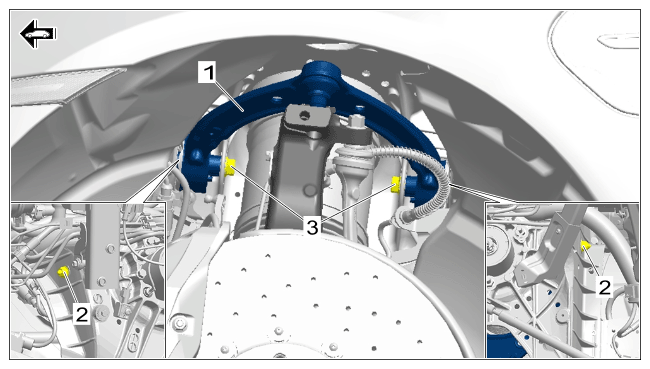

1. Install upper trailing arm -1-
   1. 1.1  Position trailing arm -1-  .
   2. 1.2  Insert new  screws -3-  .
   3. 1.3  Screw on new  nuts -2-  , but do not tighten yet.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Upper trailing arm

      Information

      Threaded joints must only be tightened in zero position. Otherwise, warping can occur in the bearings.

2. Insert wheel bearing housing in order to move upper trailing arm to zero position. Lift the wheel suspension to zero position using > VAS 6931 - lifting transmission and gearbox jack  > Zero position (shown on rear axle as an example)  .

   Measure zero position (vehicle height) from lower edge of wing to centre of axle.

   > WM, 4495TW SETTING VALUES FOR SUSPENSION ALIGNMENT

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Zero position (shown on rear axle as an example)

3. Tighten -1-  threaded joint for upper trailing arm.
   1. 3.1  Tighten nuts -2-  and counter at screws -3-  .

      > Tightening torque 50 Nm (36.9 ftlb.)

      > Torque angle + 120 °

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Upper trailing arm
