Removing Front-Axle Support

  1. Remove front-axle -1-  support.

    Get another person to help if necessary  .

    1. 1.1  Remove screws -2-  .
    2. 1.2  Remove front-axle support -1-  .
      G15552504Courtesy of PORSCHE CARS NORTH AMERICA, INC.

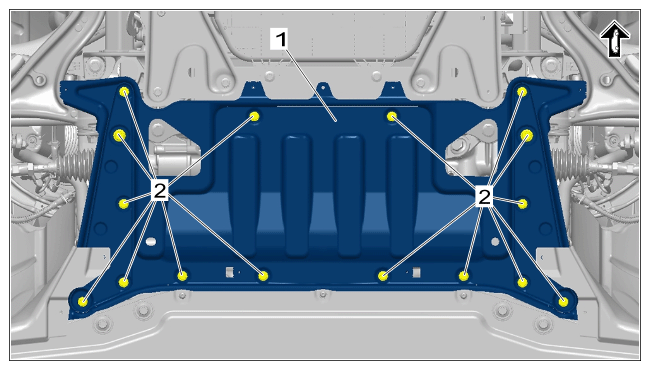

      Front-axle support (rear section)
