Installing Front-Axle Support

Get another person to help if necessary  .

1. 1.1  Position front-axle support -9-  .
2. 1.2  Screw in screws -2-  and -8-  , but do not tighten yet.
3. 1.3  Screw in the remaining screws -1-  and -3 to 7-  , but do not tighten yet.
4. 1.4  Tighten screws in sequence -1 to 8-  .

   M8 screws:  > Tightening torque 30 Nm (22 ftlb.)

   M10 screws:  > Tightening torque 55 Nm (41 ftlb.)

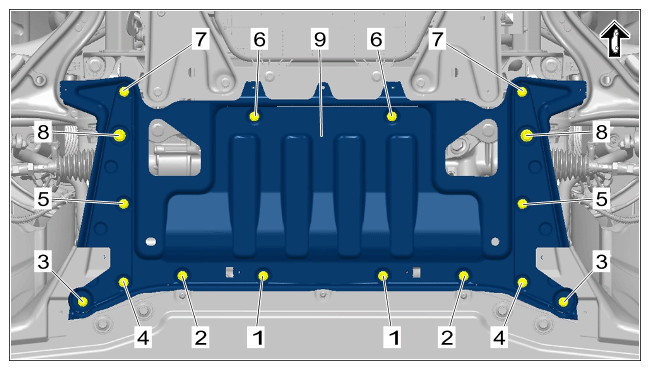

   Fig 1: Front-Axle Support (Rear Section) Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for front-axle support (rear section)
