Remove Front-Axle Support

  1. Remove front-axle -1-  support.
    1. 1.1  Remove screws -2-  .
    2. 1.2 Left side only:

      Disengage front-axle support -1-  from retaining lug on holder -3-  .

    3. 1.3  Remove front-axle support -1-  .

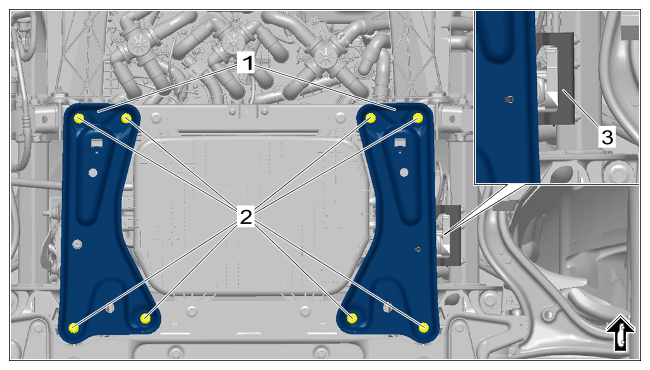

      G15552508Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front-axle support (front section)
