Installing Front-Axle Support

  1. Install front-axle support -1-  .
    1. 1.1 Left side only:

      Engage front-axle support -1-  in retaining lug on holder -3-  .

    2. 1.2  Position front-axle support -1-  .
    3. 1.3  Screw in and tighten screws -2-  .

      > Tightening torque 30 Nm (22 ftlb.)

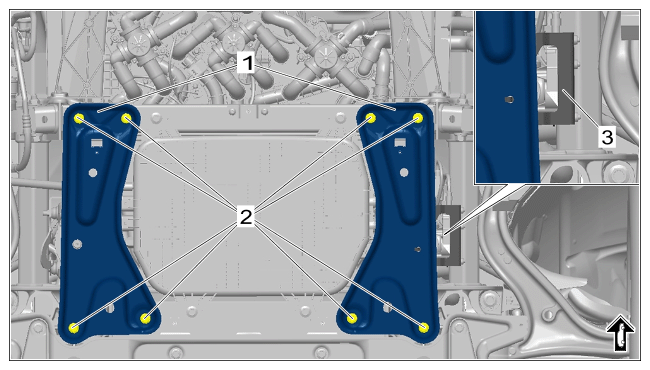

      G15552509Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front-axle support (front section)
