Technical Values

Location	Description	Type	Basic value
Holder on front axle carrier	Screw/item 1 Screw holder	Tightening torque	8 Nm

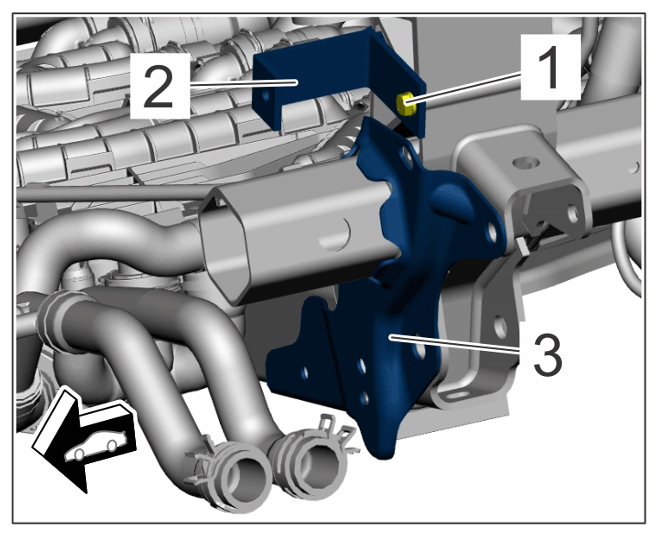

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Subframe to front axle carrier	Initial tightening/nut/Item 2: Always replace screw connection following removal	Tightening torque	70 Nm

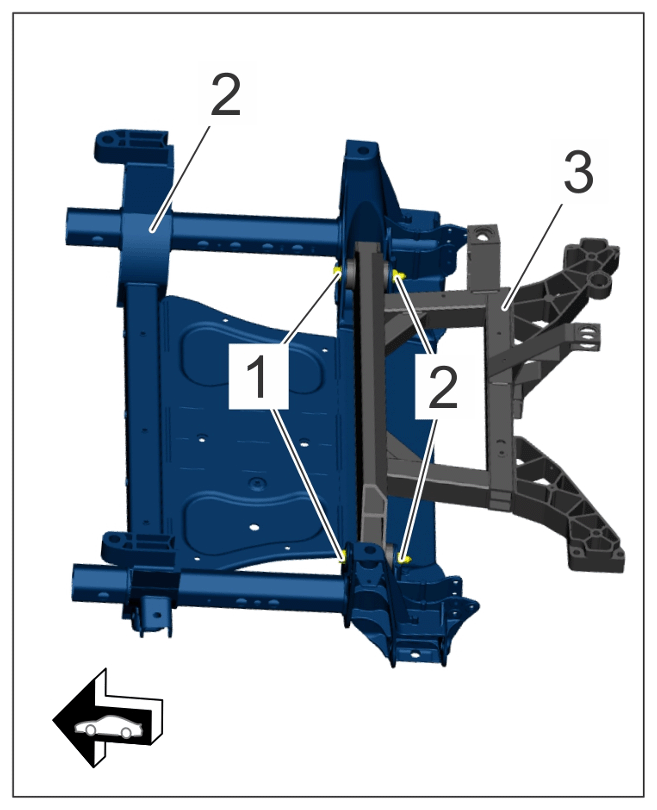

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Subframe
Subframe to front axle carrier	Final tightening/nut/Item 2: Always replace screw connection following removal	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Subframe
Spacer on subframe	Initial tightening/screws/item 1 item 2/Always replace screw connections following removal	Tightening torque	20 Nm

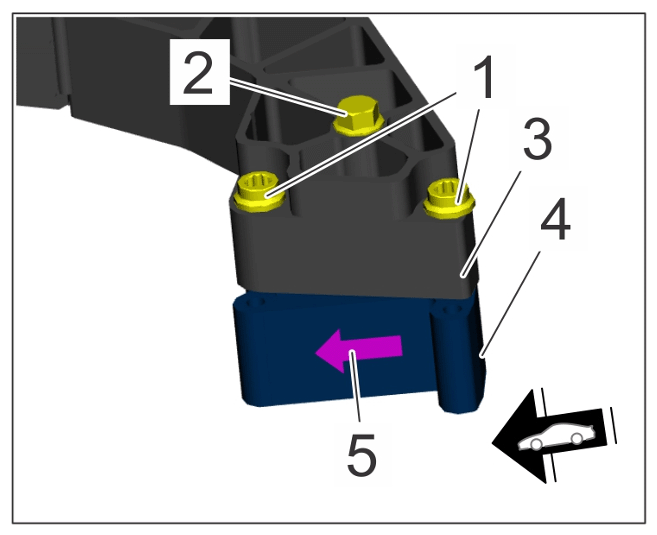

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bearing block
Spacer on subframe	Final tightening/screws/item 1 item 2/Always replace screw connections following removal	Torque angle	+ 45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bearing block
