Assembling The Front Axle Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Subframe

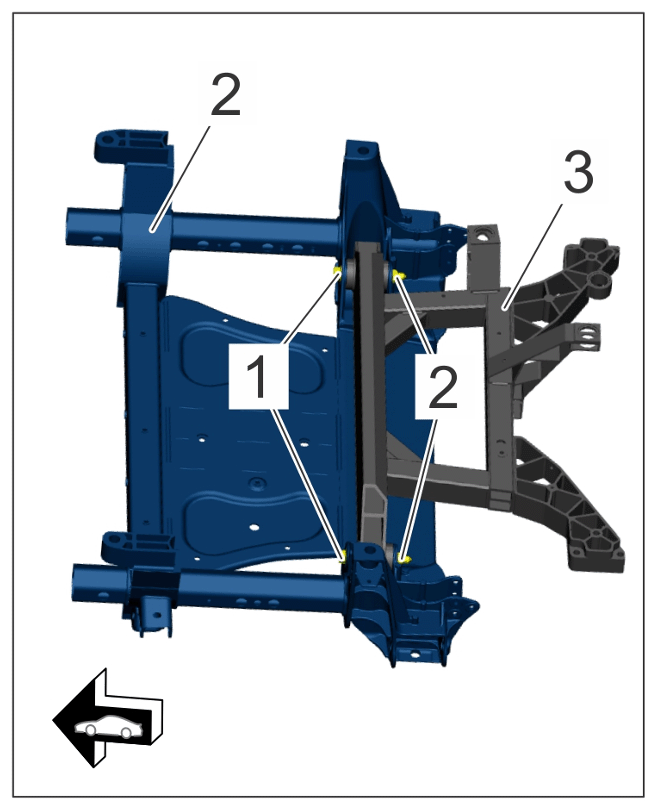

1. 1.1  Position subframe -3-  on the front axle -2-  .
2. 1.2  Position screw -1-  .
3. 1.3  Tighten nuts -2-  .

   > Tightening torque 70 Nm

   > Torque angle + 90 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting saddle

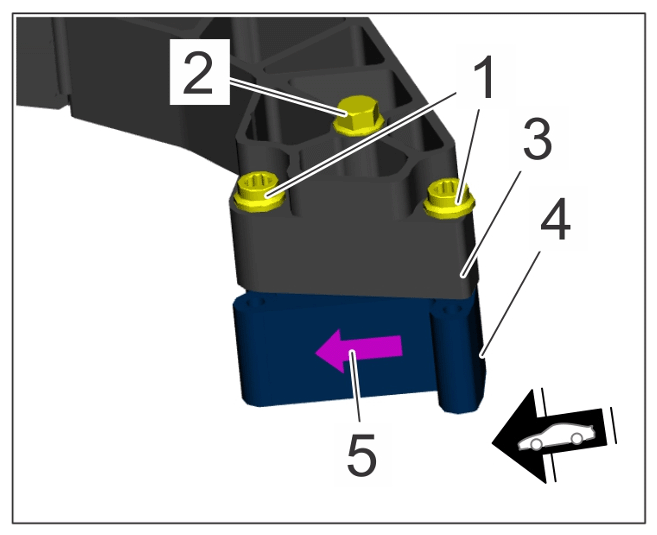

1. 2.1  Position mounting saddle -4-  on subframe -3-  .
   1. 2.1.1  Check direction of arrow -5-  in direction of travel.
2. 2.2  Tighten screw -2-  .

   > Tightening torque 20 Nm

   > Torque angle + 45 °

3. 2.3  Tighten screws -1-  .

   > Tightening torque 20 Nm

   > Torque angle + 45 °

> 489019 REMOVING AND INSTALLING POWER STEERING - SECTION ON "INSTALLING"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder

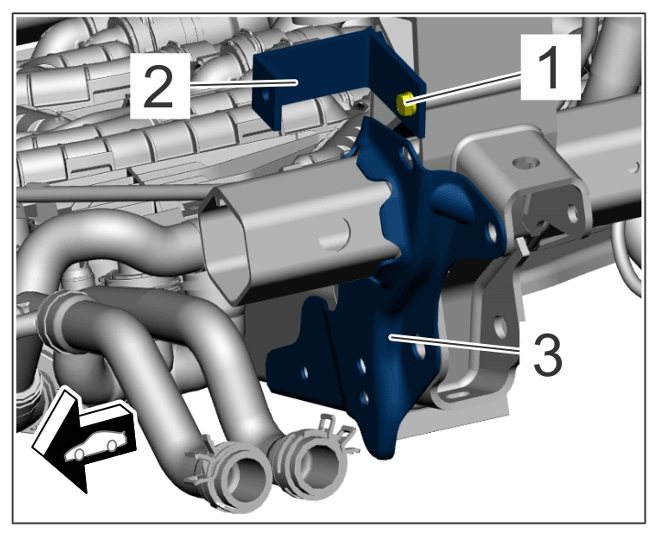

1. 4.1  Position holder -2-  and support -3-  .
2. 4.2  Tighten screw -1-  .

   > Tightening torque 8 Nm

> 401719 REMOVING AND INSTALLING LOWER TRAILING ARM  - section on "Installing"

> 405019 REMOVE AND INSTALL FRONT WHEEL BEARING HOUSING  - section on "Installing"

1. 6.1  Fit the air-spring strut front or front spring strut, depending on equipment.

   > 433019 REMOVING AND INSTALLING FRONT AIR-SPRING STRUT - section on "Installing"

   > 408519 REMOVING AND INSTALLING FRONT SPRING STRUT  - section on "Installing"
